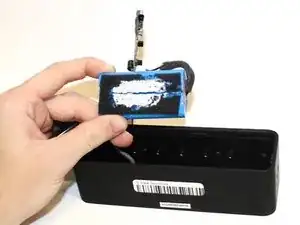

Battery/Battery Wire
Tools
These are some common tools used to work on this device. You might not need every tool for every procedure.
Troubleshooting
For problems with your ANKER SoundCore, check out our troubleshooting page.
Background and Identification
The ANKER SoundCore is a small, portable bluetooth speaker. It is extremely affordable, (costing only $28 from Amazon and Walmart), can be very loud, and holds a long charge. It is the 3rd least expensive out of ANKER’s SoundCore series, being surpassed only by the ANKER SoundCore mini and the ANKER SoundCore sport. The speaker is sold internationally and made its debut in late 2015. The later model, the ANKER SoundCore 2, has water resistance, improved sound quality, and improved battery life, but is much more expensive than the SoundCore 1.
The device is a small rectangular device with rounded, beveled edges, and it comes in the colors black, red, and teal.
Specifications
Dimensions: 6.5 x 2.1 x 1.9 in
Weight: 365 grams or 12.9 ounces
Bluetooth Version: 4.0
Driver output: 3W×2
Playtime: Estimated 24+hrs @80% volume
Battery Capacity: 4400mAh
Input: 5V / 1A
Charging time: 5 hours
Bass Boost: Passive radiator
Handsfree function: Yes
Volume/Track control: Yes
Range: 20m/66ft
Weight: 365g/12.9oz
