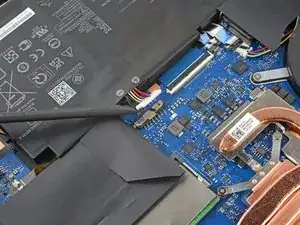

Battery Disconnect
Tools
These are some common tools used to work on this device. You might not need every tool for every procedure.
Background
The ASUS TUF Gaming F15 FX506HEB-DB74 is geared towards serious gaming and streaming. It offers a sleek, metallic design and plenty of processing power and battery life to last hours of gaming.
Identification
The ASUS TUF Gaming F15 FX506HEB-DB74 is a sleek laptop with a metallic top and sturdy plastic sides. It is sleek for such a powerful gaming laptop and has an orange accented keyboard. It comes in Eclipse Gray or Graphite Black. It has a honeycomb grip pattern on the bottom.
Specifications
Display
- 15.6-inch FHD anti-glare; 1920 x 1080 pixels
Processor
- Intel Core i5/i7/i9
Graphics
- NVIDIA GeForce RTX 3050/3060
Storage
- 512 GB or 1TB M.2 SSD
Memory
- 8/16 GB DDR4
- 32 GB max capacity
Battery
- 48-watt-hour 3-cell lithium-ion or 90-watt-hour 4-cell lithium-ion
Dimensions
- Width: 14.13 inches (35.9 cm)
- Depth: 10.08 inches (25.6 cm)
- Height: 0.9 inches (2.28 cm)
- Weight: 5.07 pounds (2.3 kg)
Ports
- USB 3.2 Gen 2 Type-C (DisplayPort support)
- 3 USB 3.2 Gen 1 Type-A
- RJ45 LAN port
- 3.55 combo audio jack
- HDMI 2.0b
