Background and Identification

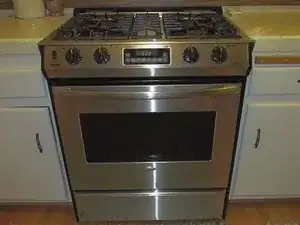

The Amana ACS3350 is a 30-inch slide-in gas stove with four sealed gas burners and a broiling system. It includes a lower storage drawer and features a primary oven capacity of 3.7 cubic feet. The oven does not include convection capabilities but does include a self-cleaning function, an interior oven light, and a built-in viewing window. The Amana ACS3350 gas stove can be identified by the model number ACS3350AS.

According to reviews from the Amana ACS3350’s product page, the stove’s oven door on this stove is easily bent, creating a dangerously hot front panel, possibly cooking the knobs and electronic controls, and slowing cooking. The stove includes knobs as cooktop controls and digital oven controls. The Amana ACS3350 features an Insta-Broil element that uses infrared heat to cook foods quickly. The stove operates off of 120 Volts and 15 Amps. It features two oven racks and a removable full-width storage drawer that can be used to store pots and pans. The oven includes a porcelain broiler pan and grid that can be removed for cleaning.

The Amana ACS3350 was sold in black and stainless steel colors. It includes the name “Amana” in black font underneath the oven’s viewing window. The cooktop’s knobs are placed on the front face of the oven above the oven door’s handle.

Technical Specifications

Product Information:

  • Brand: Amana
  • Model: ACS3350AS

Appearance:

  • Fuel Type: Gas
  • Style: Slide-In
  • Color: Stainless Steel
  • Stainless Steel Handle: No
  • Cooktop: Sealed Burner
  • Cooktop Control Type: Knobs
  • Oven Control Type: Digital
  • Viewing Window: Yes
  • Drawer: Storage
  • Clock: Yes

Dimensions:

  • Width: 31 Inch
  • Depth: 28 3/4 Inch
  • Height: 36 Inch

Capacity:

  • Number of Burners: 4
  • Primary Oven Capacity: 3.7 Cu. Ft.

Burner Output:

  • Burner 1 Output: 12500
  • Burner 2 Output: 9100
  • Burner 3 Output: 5000

Gas Cooktop Features:

  • Continuous Grates: Yes

Electric Cooktop Features:

  • Hot Surface Indicator Light: No

Oven Features:

  • Digital Temperature Display: Yes
  • Timer: Yes
  • Convection: No
  • Self-Cleaning: Yes
  • Racks: 2
  • Broiler Element Location: Top
  • Interior Oven Light: Yes
  • Removable Door: Yes

Technical Details:

  • Amps: 15
  • Voltage: 120 Volts
