Replacement Guides

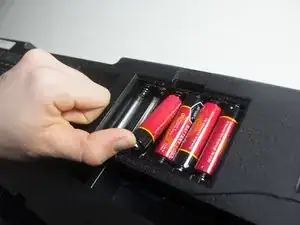

Battery

Battery

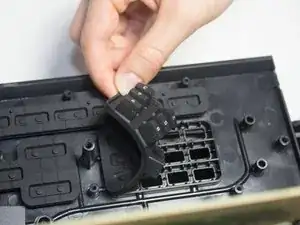

Button

Button

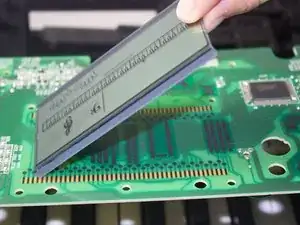

Display

Display

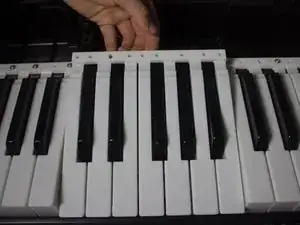

Key

Key

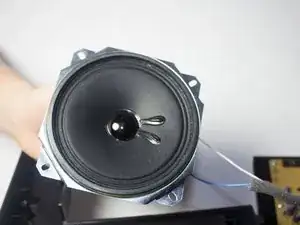

Speaker

Speaker

Tools

These are some common tools used to work on this device. You might not need every tool for every procedure.

Troubleshooting

For additional help, please refer to the Casio LK-170's troubleshooting page.

Background and Identification

The Casio LK-170 is one of the many musical instruments created by Casio. This model has a key lighting system and is the third model out of six in the Key Lighting Keyboard series.

This version included more built-in tones and rhythms than the previous models, as well as a higher maximum polyphony. The LK-170 has not faced extreme manufacturer recalls, and has favorable reviews.

There are several ways to differentiate this model from other ones in the series:

  • The model number LK-170 is located on the front of the piano above the display.
  • Both the body and the control panel have a black finish.
  • The lettering on the control panel is blue and white.
