Replacement Guides

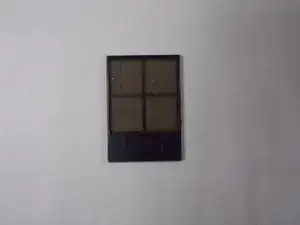

Air Filter

Air Filter

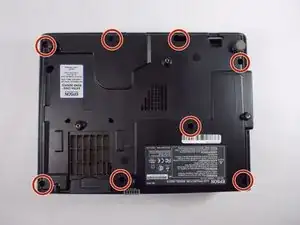

Cooling Fan

Cooling Fan

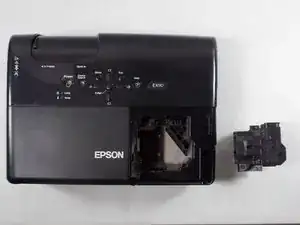

Lamp

Lamp

Tools

These are some common tools used to work on this device. You might not need every tool for every procedure.

Troubleshooting

If you are having difficulties with the Epson EX90, try referring to the troubleshooting page.

Background & Identification

Offering 2600 lumens of bright visual goodness, the EX90 is an ultra-portable projector from Epson. Large and dark rooms alike, the EX90 will be able to display your media bright and visible for all to see.

The EX90 offers a native resolution of 1024x768 pixels, with 3LCD technology that produces popping colors no matter the environment. The EX90 is compatible with both Microsoft and Apple products, with HD, VGA, and component sources available for video input. Camcorders or other digital cameras are supported as well.

The EX90 was discontinued by Epson in 2008.

Technical Specifications

Display:

  • White Brightness: 2,600 ANSI Lumens
  • Resolution: 1024x768
  • Aspect Ratio: 4:3 (XGA)
  • Contrast: 400:1 (full on/off)
  • Display Type: 3LCD Chips
  • Color Processing: 8-bit
  • Video Modes: 720p, 1080i, 480p, 480i
  • Data Modes: MAX 1600x1200

Lamp:

  • Type: 170W UHE Bulb
  • Life: 3,000 hours / 4,000 hours (eco)
  • Model: ELPLP42 / V13H010L42

Lens:

  • Included: 1.2x manual zoom, manual focus
  • Optional Lenses: No
  • Lens Shift: No
  • Throw Distance: 2.7 - 34.2 feet
  • Image Size: 25 - 361 inches (diagonal corner to corner)
  • Throw Ratio: 1.43:1 - 1.72:1 (D:W)
  • Projector Placement: For a 100 inch diagonal screen, place the projector lens between 9ft, 4in and 11ft, 3in from the screen.
  • Digital Keystone: Vertical only

Other Information:

  • Projector Size: 4.30" x 12.90" x 9.60" (HxWxD)
  • Weight: 6 pounds
  • Audible Noise: 35 dB / 28 dB (Eco)
  • Internal Speakers: 1.0 Watts Mono
  • Power: 248 Watts 100V - 240V
  • Connection Panel: Composite: RCA USB

S-Video VGA in: Dsub-15pin

  • Soft carrying case included

Accessories for the EX90 can be purchased through Epson here.

Further inquiries about the EX90 such as warranty questions or user reviews can be found on the official Projector Central User Forum.
