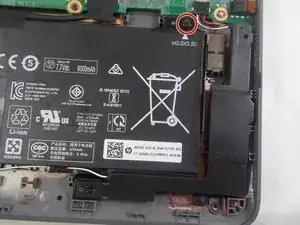

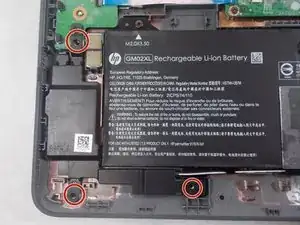

Battery
Tools
These are some common tools used to work on this device. You might not need every tool for every procedure.
Troubleshooting
For help solving issues with the HP Chromebook x360 11-ae010nr please view the troubleshooting page.
Background and Identification
The HP Chromebook x360 11 ae010nr (Series: #2MW49UA#ABA, and Model Number: 11 ae010nr), released in September 2017, is one of the many Chromebooks produced by HP.
The device comes in a durable hard plastic exterior with a smokey gray finish. It weighs around 3.11 Lb with dimensions of 12.04 x 8.18 x 0.76 in.
The screen is protected by durable Corning® Gorilla® Glass and can be rotated down into tablet mode which allows for a more effective use of the touch screen. A stylus can also be connected to the device and used in unison with the touch screen.
A 45 W AC power adapter is included with the device, providing quick charging of the 2-cell, 47.36 W lithium-ion battery. The device has a battery life of up 11 hours and 30 minutes.
Prices for the device, though they vary by distributor, are usually in the $300 range.
Specifications
Operating system - Chrome OS™
Processor - Intel® Celeron® N3350 (1.1 GHz base frequency, up to 2.4 GHz burst frequency, 2 MB cache, 2 cores)
Graphics - Integrated: Intel® HD Graphics 500
Display - 11.6" diagonal HD IPS Corning® Gorilla® Glass NBT™ WLED-backlit touch screen (1366 x 768)[12]
Memory - 4 GB LPDDR4-2400 SDRAM (onboard)
Storage - 16 GB eMMC[13]
Wireless technology - Intel® 802.11b/g/n/ac (2x2) Wi-Fi® and Bluetooth® 4.2 Combo[10,11]
Power supply - 45 W AC power adapter
Battery - 2-cell, 47.36 Wh Li-ion
Battery life - Up to 11 hours and 30 minutes[7]
External I/O Ports - 2 USB 3.1 Type-C™ Gen 1 (Data Transfer up to 5 Gb/s, DP1.2, HP Sleep and Charge); 2 USB 3.1 Gen 1 (Data transfer only); 1 headphone/microphone combo[9]
Expansion slots- 1 microSD media card reader
Energy efficiency - ENERGY STAR® certified; EPEAT® Silver registered
Webcam - HP TrueVision HD Camera with integrated dual array digital microphone
Audio - Stereo speakers
Color - Smoke gray
Dimensions (W X D X H) - 12.04 x 8.18 x 0.76 in
Weight - 3.11 lb
Software included - CyberLink Power Media Player
Security management - Kensington Mini Security Slot
