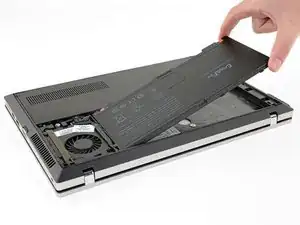

Battery

Battery

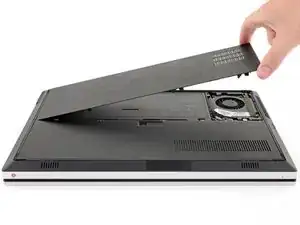

Battery Cover

Battery Cover

Tools

These are some common tools used to work on this device. You might not need every tool for every procedure.

Background and Identification

The HP ProBook 5330m is a business notebook PC made for corporate and enterprise customers. The ProBook series is a brand of business notebooks produced by Hewlett-Packard (HP). Hp marketed the ProBook series to business users. The list price of ProBook computers is generally lower than the price for HP’s higher-end EliteBook series. The HP ProBook 5330m was sold as part of the ProBook’s M-Series, which was launched in 2009 and discontinued in 2011. The ProBook 5330m has a 13.3-inch diagonal display, a standard voltage processor, and strong security features. The HP ProBook 5330m was originally released in May 2011.

HP ProBook 5330m features a Trusted Platform Module (TPM 1.2) Security Chip as an embedded security system. It includes a dual-core 2.1 GHz Intel Core i3 processor with a 3 MB cache. The computer contains 4 GB of SSR3 SDRAM with a memory speed of 1333 MHz. The HP ProBook 5330m can support up to 8 GB of RAM. Its 13.3-inch display has a resolution of 1366 by 768 pixels. It includes a 500 GB hard drive. The computer has a four-cell 41-Watt-hour lithium-polymer battery.

The HP ProBook 5330m includes the name “HP” in lowercase letters inside of a silver circle in the center of the computer’s bottom bezel.

Technical Specifications

GENERAL

  • Recommended Use: corporate business, small business
  • Embedded Security: Trusted Platform Module (TPM 1.2) Security Chip
  • Manufacturer: HP

PROCESSOR / CHIPSET

  • CPU: Intel Core i3 (2nd Gen) 2310M / 2.1 GHz
  • Number of Cores: Dual-Core
  • Cache: L3 - 3 MB
  • 64-bit Computing: Yes
  • Chipset Type: Mobile Intel QM67 Express

CACHE MEMORY

  • Type: L3 cache
  • Installed Size: 3 MB

STORAGE

  • Interface: Serial ATA-300

RAM

  • Memory Speed: 1333 MHz
  • Memory Specification Compliance: PC3-10600
  • Configuration Features: 1 x 4 GB
  • Technology: DDR3 SDRAM
  • Installed Size: 4 GB
  • Rated Memory Speed: 1333 MHz

MEMORY

  • RAM: 4 GB (1 x 4 GB)
  • Max Supported Size: 8 GB
  • Technology: DDR3 SDRAM
  • Speed: 1333 MHz / PC3-10600
  • Form Factor: SO-DIMM 204-pin
  • Slots Qty: 2
  • Empty Slots: 1

ENVIRONMENTAL PARAMETERS

  • Humidity Range Operating: 10 - 90% (non-condensing)

DISPLAY

  • LCD Backlight Technology: LED backlight
  • Resolution: 1366 x 768 (HD)
  • Widescreen Display: Yes
  • Image Aspect Ratio: 16:9
  • Monitor Features: HD anti-glare
  • Type: LED
  • Diagonal Size (metric): 33.8 cm
  • Display Resolution Abbreviation: HD

AUDIO & VIDEO

  • Graphics Processor: Intel HD Graphics 3000
  • Memory Allocation Technology: Dynamic Video Memory Technology
  • Integrated Webcam: Yes
  • Sound: Stereo speakers, stereo microphone
  • Audio Codec: IDT 92HD80

HARD DRIVE

  • Spindle Speed: 7200 rpm
  • Type: HDD
  • Capacity: 500 GB

INPUT

  • Type: keyboard, touchpad
  • Features: backlighting

COMMUNICATIONS

  • Wireless Protocol: 802.11a/b/g/n, Bluetooth 2.1 EDR
  • Bluetooth Class: Class 2
  • Wireless Controller: Broadcom 43224AGN
  • Wired Protocol: Gigabit Ethernet

WIRELESS BROADBAND (WWAN)

  • Generation: 3G
  • Cellular Protocol: EDGE, GPRS, GSM, HSPA
  • Max Transfer Rate: 21 Mbps

NAVIGATION

  • Navigation: A-GPS receiver

OPTICAL STORAGE

  • Drive Type: no optical drive
  • Type: none

PROCESSOR

  • CPU Type: Core i3
  • Processor Number: i3-2310M
  • Generation: 2
  • Manufacturer: Intel
  • Clock Speed: 2.1 GHz

CARD READER

  • Type: card reader
  • Supported Flash Memory: MultiMediaCard, SD Memory Card

BATTERY

  • Capacity: 41 Wh
  • Cells: 4-cell
  • Technology: lithium polymer

AC ADAPTER

  • Input: AC 120/230 V (50/60 Hz)
  • Output: 65 Watt, 18.5 V

CONNECTIONS & EXPANSION

  • Interfaces
    • HDMI
    • VGA
    • Headphone/microphone combo jack
    • LAN
    • 2 x USB 2.0
    • USB 2.0/eSATA
  • Memory Card Reader: Yes (SD Card, MultiMediaCard)

HEADER

  • Brand: HP
  • Product Line: HP ProBook
  • Model: 5330m
  • Localization: English
  • Country Kits: United States
  • Compatibility: PC

NETWORKING

  • Data Link Protocol: Bluetooth 2.1 EDR, Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
  • Remote Management Protocol: SNMP
  • Compliant Standards: IEEE 802.1Q, IEEE 802.1p, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, Wi-Fi CERTIFIED
  • Wireless LAN Supported: Yes
  • Wireless NIC: Broadcom 43224AGN

MISCELLANEOUS

  • Security: Trusted Platform Module (TPM 1.2) Security Chip, fingerprint reader
  • Features: Enhanced Pre-Boot Security, HP Disk Sanitizer, HP SpareKey, One-Step Logon, security lock slot (cable lock sold separately)
  • Included Laptop Accessories: power adapter
  • Compliant Standards: A-Tick, ACPI, BSMI, CCC, CSA, FCC, GOST, ICES, MIC, RoHS, SABS, UL, VCCI, WEEE
  • Manufacturer Selling Program: HP Smart Buy

MONITOR

  • Diagonal Size: 13.3 in

SOFTWARE

  • Microsoft Office Preloaded: Includes a pre-loaded image of select Microsoft Office 2010 suites. Purchase an Office 2010 Product Key Card or disc to activate preloaded software on this PC.

SYSTEM

  • Notebook Type: notebook
  • Platform: Windows
  • Hard Drive Capacity: 500 GB
  • Embedded Security: Trusted Platform Module (TPM 1.2) Security Chip
  • Security Devices: fingerprint reader

DIMENSIONS & WEIGHT

  • Width: 12.9 in
  • Depth: 8.9 in
  • Height: 1 in

AUDIO OUTPUT

  • Compliant Standards: High Definition Audio, SRS Premium Sound

MANUFACTURER WARRANTY

  • Type: 1-year warranty

MAINBOARD

  • Chipset Type: Mobile Intel QM67 Express

ENVIRONMENTAL STANDARDS

  • EPEAT Level: EPEAT Gold
  • ENERGY STAR Certified: Yes

PHYSICAL CHARACTERISTICS

  • Weight: 3.97 lbs

POWER

  • Min Operating Temperature: 41 °F
  • Max Operating Temperature: 95 °F

OPERATING SYSTEM / SOFTWARE

  • OS Provided: Type: Microsoft Windows 7 Professional 64-bit Edition
  • Type: HP Connection Manager, HP DayStarter, HP Power Assistant, HP ProtectTools Security Manager, HP QuickWeb, HP Recovery Manager, HP SoftPaq Download Manager (free download), HP Support Assistant, Microsoft Office 2010 Starter, Norton Internet Security 2011 (60 days subscription), PDF Complete Special Edition (60 days trial), Skype

VIDEO OUTPUT

  • Graphics Processor: Intel HD Graphics 3000
  • Graphics Processor Series: Intel HD Graphics

VIDEO MEMORY

  • Memory Allocation Technology: Dynamic Video Memory Technology

NOTEBOOK CAMERA

  • Integrated Webcam: Yes
