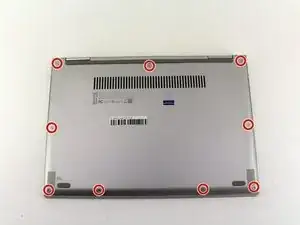

Back Case
Tools
These are some common tools used to work on this device. You might not need every tool for every procedure.
Troubleshooting Page
For additional help with the Lenovo Yoga 730 13IKB, refer to the device’s troubleshooting page.
Background and Information
The Lenovo Yoga 730-13IKB is a 2-in-1 laptop released in early 2018. The identifying model number starts with “81CT”, and can be found on the retail box or on the underside of the laptop. The laptop is designed to be as light and portable as possible and features full 180-degree screen articulation for use in tablet and laptop modes. Other notable features include 11+ hours of battery life and a USB-C Thunderbolt port.
All models come in an Iron Gray color and have a glossy black “Yoga” logo near the top of the screen. Another distinctive feature is the small fingerprint sensor below the keyboard arrow keys.
Specifications
The Yoga 730-13IKB comes in several configurations. The specifications below list all available components on current models.
- Display: 13” FHD (1920 x 1080), touchscreen
- Processor: 8th Gen Intel® Core™ i7-8550U (1.80GHz, up to 4.0GHz with Turbo Boost, 8MB Cache)
- Operating System: Windows 10 Home 64-bit
- Memory: 8GB or 16 GB DDR4 2400MHz
- Hard Drive: 256GB or 512 GB SSD
- Graphics: Intel UHD Graphics 620
Connections:
- Wi-Fi Type: 802.11ac (2 x 2)
- USB Sleep and Charge: Yes
- Thunderbolt Port: Yes
- Digital Video Out: Yes
- Number of USB Ports: 3
- Gigabit Ethernet: No
- HDMI Output: Yes
Features:
- Blu-ray or DVD: No
- Memory-Card Reader: No
- Facial Recognition: No
- Fingerprint Reader: Yes
Additional Information
The following links contain more useful information about the laptop.
