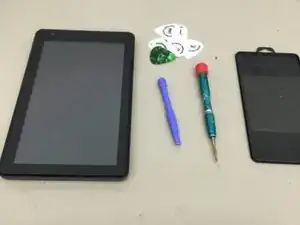

Tools

These are some common tools used to work on this device. You might not need every tool for every procedure.

Background and Identification

The RCA Voyager II is a 7-inch tablet produced by RCA. RCA, which stands for the Radio Corporation of America, was a prominent electronics corporation in the United States for several decades, from the 1920s to the 1980s. After the corporation was acquired by General Electric in 1986, RCA became a brand name only, owned by Sony and Technicolor and licensed to other companies for certain products.

The RCA Voyager II tablet’s 7-inch multi-touch display has a resolution of 1024 by 600 pixels. The tablet includes a quad-core MediaTek MT8127 processor with a 1.4 GHz clock speed. This model features 1 GB of RAM and 8 GB of internal memory. MicroSD or MicroSDHC cards can be used to expand the tablet’s memory, and the device can support up to 32 GB of memory. RCA advertises that this tablet’s battery can last up to 6 hours on one charge. The tablet’s body includes a headphone jack and a Micro-USB port.

RCA tablets use the Android operating system (OS). Tablets with this OS have access to the Google Play Store and usually come with pre-installed Google apps such as Gmail, Google Chrome, Google Maps, YouTube, and several others.

RCA tablets are typically non-descript but include the Android three-button navigation system with a ‘home’ button in the center of the phone’s bottom bezel (indicated with a house-shaped button), a ‘back’ button on the left side of the ‘home’ button (indicated with an arrow pointing to the left), and a ‘show-all-open-applications’ button on the right side of the ‘home’ button (indicated by a square).

Technical Specifications

DISPLAY:

  • Resolution: 1024 x 600
  • Touchscreen: Multi-Touch
  • Multi-Touch Display: Yes
  • Diagonal Size: 7 in
  • Diagonal Size (metric): 17.8 cm
  • Native Resolution: 1024 x 600

MISCELLANEOUS:

  • Color: black
  • Color Category: black

PROCESSOR:

  • Processor: MediaTek MT8127
  • Clock Speed: 1.4 GHz
  • Number of Cores: Quad-Core
  • Processor Number: MT8127
  • Manufacturer: MediaTek

MEMORY:

  • Storage: 8 GB

COMMUNICATIONS:

  • Wireless Protocol: 802.11b/g/n

NETWORKING:

  • Wireless Connectivity: IEEE 802.11b, IEEE 802.11g, IEEE 802.11n

MULTIMEDIA:

  • Audio: Microphone

BATTERY:

  • Run Time (Up To): 6 hour(s)

HEADER:

  • Brand: RCA
  • Product Line: RCA
  • Model: 7 Voyager II

SYSTEM:

  • Platform: Android
  • Handheld Type: tablet

EXPANSION AND CONNECTIVITY:

  • Interfaces
    • 1 x headphones
    • 1 x Micro-USB

RAM:

  • Installed Size: 1 GB

FLASH MEMORY:

  • Installed Size: 8 GB

CARD READER:

  • Slots (for SD): microSD slot
  • Supported Flash Memory Cards: microSD, microSDHC
  • Flash Memory Cards Max Supported Capacity: 32 GB

DIGITAL CAMERA:

  • Cameras (for SD): front camera

AUDIO INPUT:

  • Type: microphone

INTERFACE PROVIDED:

  • Interface: Micro-USB, headphones
  • Qty: 1

OS PROVIDED:

  • Type: Android 5.0 (Lollipop)

BATTERY LIFE DETAILS:

  • Usage Mode: video playback
  • Run Time (Up To): 4 hour(s)

SERVICE & SUPPORT:

  • Type: 1 year warranty

SERVICE & SUPPORT DETAILS:

  • Type: limited warranty
  • Service Included: parts and labor
  • Full Contract Period: 1 year

DIMENSIONS & WEIGHT:

  • Width: 4.5 in
  • Depth: 0.5 in
  • Height: 7.3 in
  • Weight: 10.16 oz
