Back Panel
Tools
These are some common tools used to work on this device. You might not need every tool for every procedure.
Background and Identification
The Razer Blade is Razer’s flagship line of gaming laptops and has three different versions per new release: the Blade, Blade Pro, and Blade Stealth. All three vary in size and computing power; the Blade Pro being the strongest but the least portable, and the Blade Stealth being the lightest but the weakest in power. The three versions are revamped every year, and the primary differences between the yearly models are the screen size, graphics card, and processor.

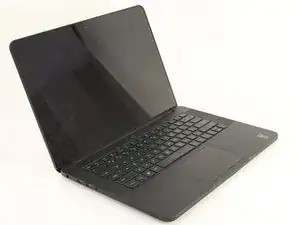

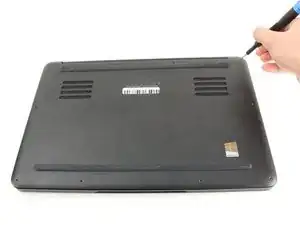

Sitting between the Stealth and the Pro, the Blade has a good balance between size and processing speed. The 2015 model of the Razer Blade has a gunmetal chassis, 14-inch screen, and the green Razer branding on the front. Because it is aesthetically identical to all other Razer Blade models, the only ways to identify the 2015 model are to check the back for the product tag or to access the system information within the laptop itself. The product tag will be right above the bar code and should read “Razer Blade RZ09-0130.” If this name is present, then the following guides will suit your needs for the device.
Troubleshooting
How to fix common problems with the Razer Blade 2015 gaming laptop.
Specifications
Hardware
Dimensions: 17.9 x 345 x 235 (mm)
Weight: 2 kg, Power Supply 370 g
Connections: 3 USB 3.0 / 3.1 Gen1, 1 HDMI, 1 Kensington Lock
Audio Connections: 3.5 mm combo
Battery: 71 Wh Lithium-Polymer
Camera: Webcam: 2MP
Display: 14 inch 16:9, 3200 x 1800 pixel, 10-point capacitive, IPS, Sharp
Monitor name: LQ140Z1JW01, ID: SHP1401, glossy: yes
Processor: Intel Core i7-4720HQ (Intel Core i7)
Mainboard: Intel HM87 (Lynx Point)
Sound Card: Intel Lynx Point PCH - High Definition Audio Controller
Sensors: Ambient light sensor
Software
Memory: 16308 MB, 800 MHz, Dual-Channel, 11-11-11-28
Storage: 256 GB, Lite-On IT L8T-256L9G
Networking: Intel Dual Band Wireless-AC 7260, Bluetooth 4.0
Base Operating System: Microsoft Windows 8.1 64 Bit
Bonus
Additional Features: Stereo Speakers, Chiclet Keyboard, Keyboard Light, Warranty Card, Cleaning Cloth, Quick Start Guide, iBT Audio Monitor, Razer Synapse 2.0
Reference
Razer Blade 14” (2015) Specifications
