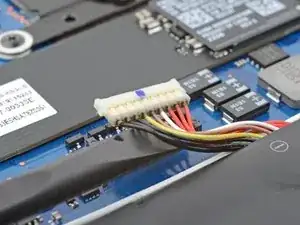

Battery Disconnection
Tools
These are some common tools used to work on this device. You might not need every tool for every procedure.
Background
Released in April 2021, The Galaxy Books are Samsung's first foray into flagship laptop design. Similar to Samsung's S series phones, the Galaxy Books are stratified into base, budget, and higher-end models. The Galaxy Book Pro 360 is the higher-end model out of the bunch, with its main features being its 2-in-1 screen, S pen support, and Super AMOLED display.
Identification
The Galaxy Book Pro 360 comes in a 13.3" and 15.6" model with choices of i5 or i7 Intel processor and 8 GB or 16 GB of RAM (RAM cannot be upgraded). It currently comes in Mystic Bronze, Mystic Silver, and Mystic Navy.

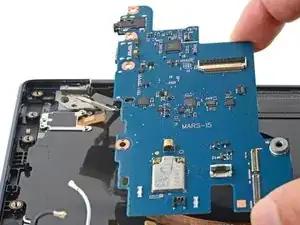

The starting price is $809 and can be identified by the model number NP950QDB or Mars-15.
Technical Specifications
Operating System
- Windows 11 Home
Processor / Chipset
- Intel® Core™ i7-1165G7 Processor
- Intel® Core™ i5-1135G7 Processor
Graphics
- Intel® Iris® Xe Graphics
Display
- 13.3" / 15.6" FHD (1920 x 1080) AMOLED with touchscreen
Memory and Storage
- 13.3" display: 8 GB RAM + 256 GB SSD
- 13.3" display: 16 GB RAM + 512 GB SSD
- 15.6" display: 8 GB RAM + 512 GB SSD
- 15.6" display: 16 GB RAM + 1 TB SSD
Optical Drive
- None
Colors
- Mystic Bronze
- Mystic Navy
- Mystic Silver
Network
- Bluetooth v5.1
- Wi-Fi 6 (Gig+), 802.11 ax
- 5G
Ports
- 1 Thunderbolt™ 4
- 2 USB Type-C
- MicroSD Multi-media Card Reader
Input
- Pro keyboard with Numeric key (Backlit keyboard)
- S Pen
- Touchpad
- Touchscreen
Security
- TPM
- Fingerprint Reader
Power
- 13.3" display: 63 Wh
- 15.6" display: 68 Wh
Dimension (W x D x H)
- 13.3" display: 11.91" x 7.95" x 0.45"
- 15.6" display: 13.97" x 8.98" x 0.47"
Weight
- 13.3" display: 2.29 lb
- 13.3" display (5G): 2.43 lb
- 156" display: 3.06 lb
Speaker
- 13.3" display: AKG Stereo Speakers ( 4W x 2 )
- 15.6" display: AKG Stereo Speakers (1.5W x 2)
- Dolby Atmos®
- 3.5 mm Headphone out / Mic-in Combo
Camera
- 720p HD Front-facing Camera
