Background and Identification

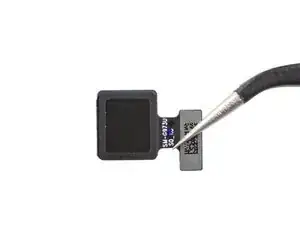

The release of the S10 marks Samsung's tenth year of Galaxy phones. Marketed to those who "want a premium smartphone with powerful performance," the S10 brings spec bumps in almost every category over the previous year's S9, including a subtle-yet-striking redesign and the inclusion of a new "Dynamic AMOLED Infinity O" display which features a cutout in the upper-right-hand corner for the front-facing camera(s). Other notable features include a new ultrasonic fingerprint sensor under the display and the inclusion of a 3.5 mm headphone jack.

The S10 was released in March of 2019 and is available in a variety of color and spec configurations.

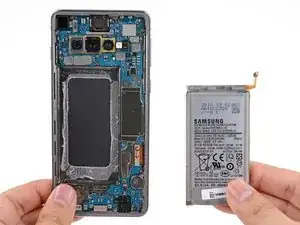

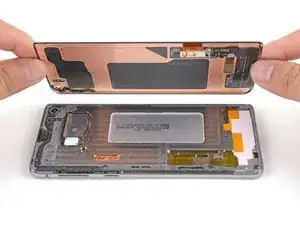

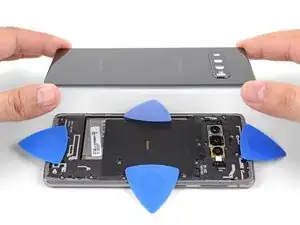

The most often replaced Samsung Galaxy S10 parts include the battery, screen, and rear glass panel/cover.

Specifications

  • Dimensions: 70.4 x 149.9 x 7.8 mm
  • Weight: 157 g
  • Display: 6.1-inch Quad HD+ Curved Dynamic AMOLED, 19:9 (550ppi)
  • Cameras:

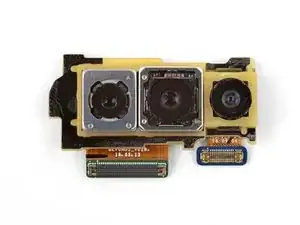

    • Rear
      • Telephoto: 12 MP PDAF, F2.4, OIS (45° FOV)
      • Wide-angle: 12 MP Dual-Pixel AF, F1.5/F2.4, OIS (77° FOV)
      • Ultra Wide: 16 MP FF, F2.2 (123° FOV)
    • Front:
      • Selfie: 10 MP Dual Pixel AF, F1.9 (80° FOV)
  • Processor:
    • Int: 8nm Exynos 64-bit Octa-core processor (Max. 2.7 GHz + 2.3 GHz + 1.9 GHz)
    • America: 7nm Snapdragon 64-bit Octa-core processor (Max. 2.8 GHz + 2.4 GHz + 1.7 GHz)
  • Memory: 8GB RAM (LPDDR4X), 128 GB/512 GB + MicroSD slot (up to 512 GB)
  • Battery: 3,400 mAh
  • Connectivity:
    • Network: Enhanced 4x4 MIMO, Up to 7CA, LAA, LTE Cat.20
    • Wi-Fi: 802.11 a/b/g/n/ac/ax (2.4/5GHz), VHT80 MU-MIMO, 1024QAM
  • Water and dust resistance: IP68
  • OS: Android 9.0 Pie
