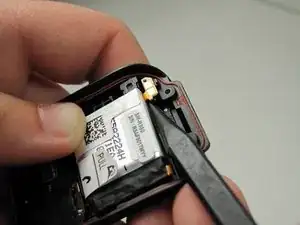

Battery
Tools
These are some common tools used to work on this device. You might not need every tool for every procedure.
Troubleshooting
For more information regarding common troubleshooting issues check out Samsung Gear 2 Troubleshooting
Background and Identification
The Gear 2 is Samsung's second-generation smartwatch, released simultaneously as two other smartwatches called the Gear Fit and the Gear 2 Neo. The Gear 2 differs from these two other models in a number of specifications; for example, the Gear 2 has a camera while the other two models do not. The Fit is uniquely rectangular and does not have a home button. The Neo has a polycarbonate wristband, giving the smartwatch a more plastic feel and a lighter feel.
Unlike the previous model, the Galaxy Gear, the Samsung Gear 2 can select music, take pictures, and measure fitness statistics using a pedometer, heart rate monitor, and exercise recorder. The added home button makes navigating the smartwatch easier and the larger processor speeds up functionality.
Specifications
- Dual-core 1 GHz processor
- 4 GB internal memory
- 512 MB RAM
- 1.63" 320x320 Super AMOLED display
- 2 MP camera capable of recording 720p video at 30 FPS
- Accelerometer, gyroscope, heart rate sensor
- Bluetooth Low Energy connectivity
- Integrated microphone
- IrLED sensor
- 300 mAh battery
- Weight: 68 grams (41 grams without band)
