Sony Ericsson W350a Repair

For help with common problems, visit the Sony Ericsson W350a Troubleshooting Page.

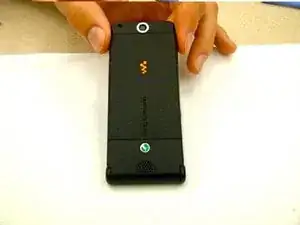

The Sony Ericsson W350a can be identified by the music control buttons on the front flap as well as the small volume control buttons on the right side of the phone. On the back side of the phone there holds a small green raised Sony Ericsson logo and a small orange walkman logo. Slightly above the orange logo there is a 1.3 MP, 1280x1024 pixel camera, that does not record. The speaker is located on the bottom backside of the phone. Inside the flap there is a standard phone keyboard. Finally, the left side of the phone contains a USB port, along with a small camera button at the top.

Fashioned as a small portable music player - but able to store 470 songs on the memory card (included in phone kit)

Built-in digital camera with screen viewfinder, dedicated menus and direct interaction with in-phone imaging and messaging features

Use TrackID and get the song, artist, and even the album in seconds

Tune in the FM radio to a favorite station or try a solo - the W350a comes pre-loaded with Guitar Legend, a mobile game for rock 'n' roll buffs

General

2G Network

GSM 900 / 1800 / 1900 - W350i

GSM 850 / 1800 / 1900 - W350a

Design

Slider

Size

Dimensions: 104 x 43 x 10.5 mm

Weight: 80 g

Display

Type: TFT, 256K colors

Size: 176 x 220 pixels, 1.9 inches

Ringtones

Type: Polyphonic, MP3, AAC

Customization: Download

Vibration: Yes

Memory

Phonebook: 1000 x 20 fields, Photo call

Call Records: 30 received, dialed and missed calls

Card Slot: Memory Stick Micro (M2), 512MB card included

Internal Memory: 14 MB

Data

GPRS: Class 10 (4+1/3+2 slots), 32 - 48 kbps

HSCSD: Yes

EDGE: Class 10, 236.8 kbps

3G: No

WLAN: No

Bluetooth: Yes, v2.0 with A2DP

Infrared Port: No

USB: Yes, v2.0

Features

Messaging: SMS, EMS, MMS, Email, Instant Messaging

Browser

WAP: 2.0/xHTML, HTML (NetFront), RSS reader

Games: Yes + downloadable

Colors: Electric black, Ice blue, Hypnotic black, Graphic white

Camera: 1.3 MP, 1280x1024 pixels

Video: Yes

Music

Walkman player Java: Yes, MIDP 2.0

FM Radio: No

Battery

Type: Standard battery, Li-Po 780 mAh (BST-36)

Stand-by: Up to 300 h

Talktime: Up to 7 h

Phone Specs

• http://lifestyle.iloveindia.com/lounge/s...

Phone Features

• http://www.mobiledia.com/phones/sonyeric...

Maintenance Video

• http://www.youtube.com/watch?v=lhkfVOlpz...
