Battery
Tools
These are some common tools used to work on this device. You might not need every tool for every procedure.
Identification and Background

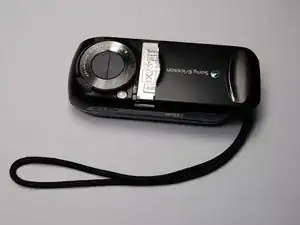

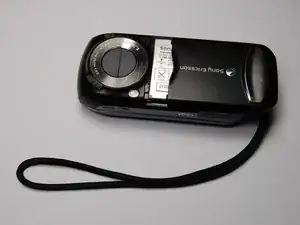

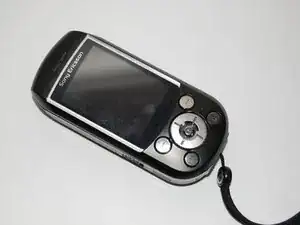

The Sony Ericsson s710a is a swivel design phone. The s710a was released worldwide making it a Tri-band phone supported by the GSM cell phone technology. The Tri-band antenna allows the phone to operate on three different frequencies in multiple countries. However, when Tri-band phones are released within the United States they are locked to the US frequency.
The s710a was released in 2001 for the AT&T network using the 850 MHz US frequency along with using their EDGE network. A key feature of the s710a at the time was its expandable memory slot, which added to its mp3 player capabilities. The compatible memory card is the memory stick pro duo. Bluetooth technology allows for hands free calling and the 1.3 megapixel camera is great for capturing any moment.
Specifications
- Modes:
- GSM 850 / 1800 / 1900
- Dimensions:
- 4.23" x 1.93" x 0.96" (107 x 49 x 24.4 mm)
- Battery:
- Talk: 7 hours max. (420 minutes)
- Standby: 300 hours max. (12.5 days)
- 780 mAh Lithium Ion
- Display:
- Type: LCD (Color TFT/TFD)
- Resolution: 240 x 320 pixels (QVGA)
- Colors: 262,144 (18-bit)
- Memory:
- 32 MB internal storage
Source: www.phonescoop.com
Troubleshooting
Diagnose any problems you may have with our Sony s710a Troubleshooting Guide.
