Announced
2014, February
Available
Released 2014, April
Dimensions
146.8 x 73.3 x 8.2 mm (5.78 x 2.89 x 0.32 in)
Weight
163 g (5.75 oz)

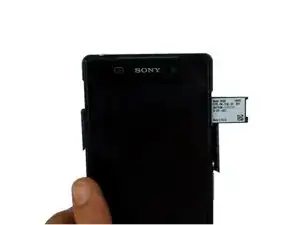

SIM
Micro-SIM
DISPLAY
Type IPS LCD capacitive touchscreen, 16M colors
Size 1080 x 1920 pixels, 5.2 inches (~424 ppi pixel density)
Multitouch Yes, up to 10 fingers

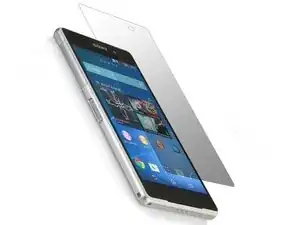

Protection Shatter proof glass
- Triluminos display
- X-Reality Engine
PLATFORM OS
Android OS, v4.4.2 (KitKat), planned upgrade to v5.0 (Lollipop)
Chipset
Qualcomm MSM8974AB Snapdragon 801
CPU
Quad-core 2.3 GHz Krait 400
GPU
Adreno 330
MEMORY
Card slot microSD, up to 128 GB
Internal 16 GB, 3 GB RAM
CAMERA
Primary 20.7 MP, 5248 х 3936 pixels, autofocus, LED flash, check quality
Features 1/2.3'' sensor size, geo-tagging, touch focus, face detection, HDR, panorama
Video 2160p@30fps, 1080p@60fps, 720p@120fps, HDR, check quality
Secondary 2.2 MP, 1080p@30fps
SOUND
Alert types Vibration; MP3, WAV ringtones
Loudspeaker
Yes, with stereo speakers
3.5mm jack Yes
WLAN
Wi-Fi 802.11 a/b/g/n/ac, dual-band, Wi-Fi Direct, DLNA, hotspot
Bluetooth
v4.0, A2DP, apt-X
GPS
Yes, with A-GPS, GLONASS
NFC
Yes
Radio
FM radio with RDS
USB

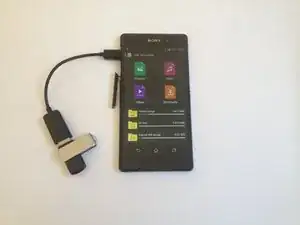

microUSB v2.0 (MHL TV-out), USB Host
FEATURES
Sensors Accelerometer, gyro, proximity, compass, barometer
Messaging SMS (threaded view), MMS, Email, IM, Push Email
Browser HTML5
Java Yes, via Java MIDP emulator
- Fast battery charging: 60% in 30 min (Quick Charge 2.0)
- ANT+ support
- Active noise cancellation with dedicated mic
- Xvid/MP4/H.264 player
- MP3/eAAC+/WAV/Flac player
- Document viewer
- Photo viewer/editor
- Voice memo/dial
BATTERY

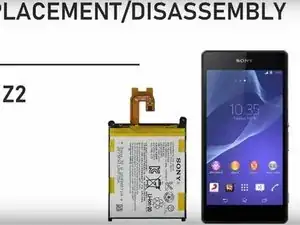

Non-removable Li-Ion 3200 mAh battery
Stand-by Up to 690 h (2G) / Up to 740 h (3G)
Talk time Up to 15 h (2G) / Up to 19 h (3G)
Music play Up to 120 h
MISC Colors Black, White, Purple (D6502, D6503) / Black, White (D6543)
SAR US 1.34 W/kg (head) 0.82 W/kg (body)
SAR EU 0.38 W/kg (head)
Price group About 340 EUR
