Tools

These are some common tools used to work on this device. You might not need every tool for every procedure.

Troubleshooting

If you are having difficulties with the Xbox One S or need additional help, refer to the Xbox One S Troubleshooting page.

Background and Identification

Released in August 2016, the Xbox One S is a major revision to the Original Xbox One (released in 2013). This model of Xbox One S is identified by the name Xbox One S on the top right hand corner on the backside of the device.

Notable upgrades include a 40% size reduction, an integrated power supply, and native 4K video output for Blu-Ray playback and online video streaming.

The standard Xbox One S ships in white alongside a redesigned Xbox wireless controller. It features a frontside USB 3.0 port, IR blaster, and controller sync button. Connectivity options are similar to the previous model, however the Kinect port has been replaced by a standard USB 3.0 port.

The Xbox One S, unlike the Xbox One, has holes and dots on one half, and not the diagonal line and slits. The Xbox One S also has a large circle section beneath the holes that is used as the air vent to cool all the internal components.

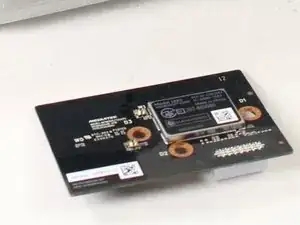

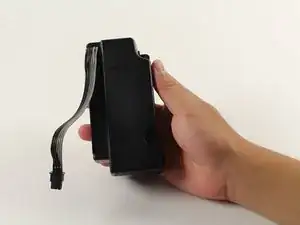

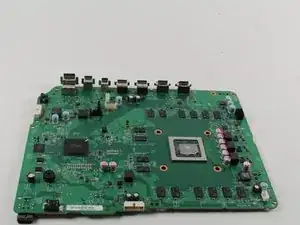

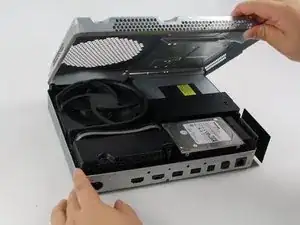

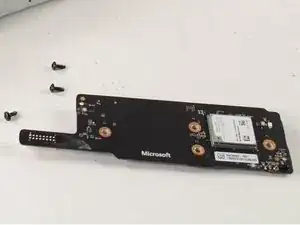

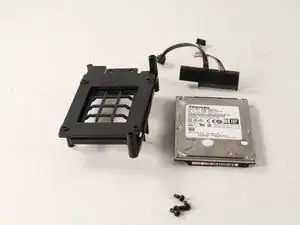

The most often replaced Xbox One S parts include the power supply, motherboard, hard drive, and wi-fi board.

Technical Specifications

  • 4K Video Streaming and Game Upscaling
  • HDR Gaming
  • 500 GB, 1 TB, 2 TB Storage Options
  • Integrated power supply
  • IR Blaster
  • Blu-Ray
