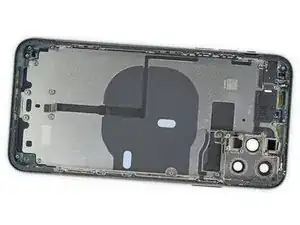

Rear Case

Rear Case

Wallpapers

Check out our free iPhone 11 Pro teardown wallpapers! Choose from iFixit or Creative Electron (X-ray) versions.

Background and Identification

Starting at $300 USD more than the standard iPhone 11, Apple’s “Pro” model notably gains a third rear camera, improved durability and water resistance, and a new 5.8-inch “Super Retina XDR” OLED display. It also ships with an 18W power adapter (a first for an iPhone) for fast charging, and greatly improved battery life—an extra 4 hours over the prior year’s iPhone XS, according to Apple. In addition to Silver, Gold, and Space Gray options, a new Midnight Green color is also available.

Apple’s 3D Touch feature, first introduced with the iPhone 6s and 6s Plus, is discontinued with this model.

A larger, 6.5-inch iPhone 11 Pro Max is also available.

The most often replaced iPhone 11 Pro parts include the battery, screen, and speakers.

Specifications

Announce date: September 10, 2019

Operating System: iOS 13

Display:

  • 5.8-inch “Super Retina XDR” OLED display
  • Multi‑touch
  • 2436 × 1125 pixel resolution (458 ppi)
  • 2,000,000:1 contrast ratio (typical)
  • True Tone
  • P3 wide color gamut
  • 800 nits max brightness; 1200 nits max HDR (typical)
  • Fingerprint-resistant oleophobic coating

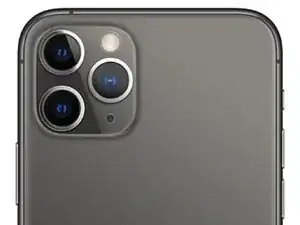

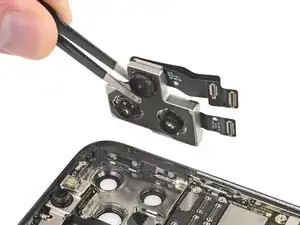

Triple primary camera:

  • True Tone flash
  • 4K video recording, up to 60 fps
  • Wide-angle module
    • 12 MP
    • ƒ/1.8 aperture
    • Optical image stabilization (OIS)
    • Autofocus with 100% Focus Pixels
    • Six-element lens
  • Ultra-wide module (120° field of view)
    • 12 MP
    • ƒ/2.4 aperture
    • Five-element lens
  • Telephoto module (2x optical zoom)
    • 12 MP
    • ƒ/2.0 aperture
    • Optical image stabilization (OIS)
    • Six-element lens

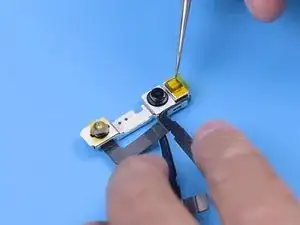

TrueDepth selfie camera with Face ID:

  • 12 MP
  • ƒ/2.2 aperture
  • 4K video recording, up to 60 fps
  • Retina Flash

Processor: A13 Bionic with 3rd-generation Neural Engine

  • 7 nm process
  • 6 cores

RAM: TBD

Storage: 64, 256, or 512 GB

Sensors:

  • Face ID
  • Barometer
  • Three-axis gyro
  • Accelerometer
  • Proximity sensor
  • Ambient light sensor

Wireless Connectivity:

  • 802.11ax Wi‑Fi 6 with 2x2 MIMO
  • Gigabit-class LTE with 4x4 MIMO and LAA
  • Bluetooth 5.0
  • Apple-designed U1 Ultra Wideband chip for spatial awareness
  • NFC

Dimensions: 5.67 × 2.81 × 0.32 in (144 × 71.4 × 8.1 mm)

Weight: 188 g (6.63 oz)

Colors: Silver, Space Gray, Gold, Midnight Green
