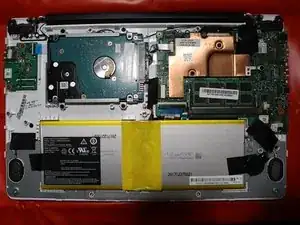

Battery Replacement or Removal

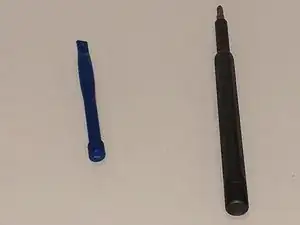

Tools
These are some common tools used to work on this device. You might not need every tool for every procedure.
Background
The LEAP T304 is a laptop by jp.ik purpose-built for students grades K-6. It features drop resistance, spill resistance, school-day battery, rounded corners, and educational software.
Technical Specifications
Operating System: Windows 11 or Windows 11 SE
CPU: Intel Celeron N4020 (2 cores, 2 threads, 4 MB cache, up to 2.6 GHz, 6 W TDP)
Memory: 4 GB LPDDR4
Storage: 128 GB SSD (M.2 2280)
Display: 11.6” TN panel (HD 1366 x 768, anti-glare, non-touch)
I/O:
- 1x DC-in port (12V, 2A, 24W)
- 2x USB 3.0 ports
- 1x USB Type-C 3.0 port (USB only)
- 1x HDMI
- 1x Audio/mic combo jack
- 1x Micro SD card reader
Speakers: Dual built-in speakers
Sensors: Accelerometer
Security: fTPM
Connectivity:
- Wifi 802.11 ac 2x2
- Bluetooth 5.0
Camera: Rotatable 2 MP
Battery: 2-cell 4000mAh, 30Wh, all-school-day battery life
Ruggedness:
- Drop resistant up to 100 cm (MIL-STD-810G)
- Resistant to liquid spills and dust (IP5x)
Weight: 1.25 kg
Dimensions: 305 x 201.5 x 19.9–24.0 mm (12.01 x 7.93 x 0.78–0.94 inches)
Note: Some technical specifications can be different from region to region
