Introduction

If your 2008 Honda Civic does not have a functioning dome light or its light is flickering, use this guide to replace the dome light.

Before using this guide inspect the dome light. There are multiple reasons why the dome light may not be functioning. Some of these reasons include the bulb is loose, the bulb is burned out, a wiring issue, or a weak battery. Before replacing the bulb, try disconnecting and then reconnecting the car battery to see if the dome light functions again. If the dome light is still not functioning, use this guide to replace the dome light bulb.

Before beginning, make sure to disconnect the car battery to avoid a short circuit. Only reconnect the battery following step 7. Avoid touching the bulb with your bare hands as the oils from your hands can cause the bulb to degrade faster or shatter.

  1. QKwSKqBKMcpMBbNO
    QKwSKqBKMcpMBbNO
    ldhEVEuBHE4Jb6Pt
    • Before replacing the dome light and to avoid a short circuit, disconnect the car battery first.

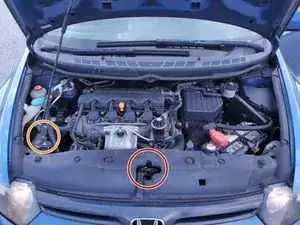

    • Open the hood of your car by pressing the front latch and lift the hood.

    • Carefully attach the hood strut, (located towards the left of your car's engine), into the slot to hold the weight of the hood.

    • Disconnect the positive terminal of the battery in order to avoid short circuits.

  2. WUmR4PSyRVSZtQhg
    WUmR4PSyRVSZtQhg
    uRsupOnElThHFdPR

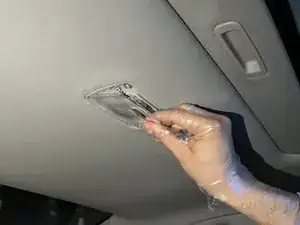

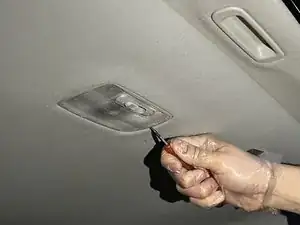

    • Use a spudger and insert it into the space between the dome light cover and edge.

    • Gently pry the cover off but be careful that you don't break any of the clips attaching the cover to the assembly.

  3. o5A2f4wac5VDb2bQ

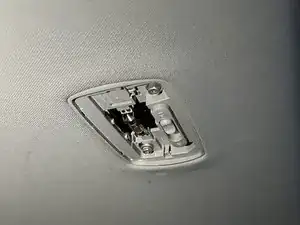

    • Evaluate if the bulb is just loose or if it has burned out and needs to be replaced.

    • In this case, you can see that the bulb has turned black from the inside, indicating it has shorted out. This bulb needs to be replaced.

  4. 1blmEyvp6JCuLtqD
    1blmEyvp6JCuLtqD
    yaQfEQOIYyviKgo3

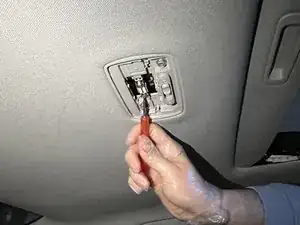

    • Use the spudger to detach the bulb from one end of the socket.

    • Pull the bulb out of the socket with the end that is loose.

  5. FaKNXbbV4fxJGMaB

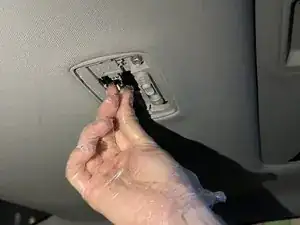

    • Align the new bulb with the socket and push it back into place.

    • Ensure the bulb is connected to each end of the socket or it will not function.

  6. 3tliBTqUGJKoTtfC
    3tliBTqUGJKoTtfC
    RRTHblK3iXjlpVjC
    6cEAU4MFkuwTdcZp

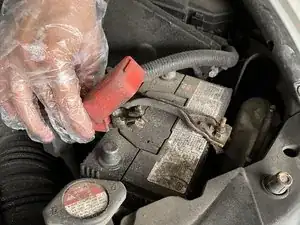

    • Before attaching the cover of the dome light, reconnect the car battery carefully and test the light to make sure it works.

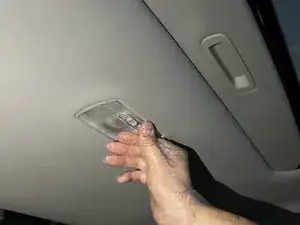

    • Align the tabs on the dome light cover with the holes in the assembly and push the cover back into place.

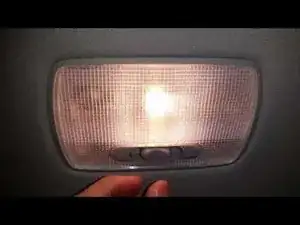

  7. XniIrKdGnZN3npTb
    • You should now have a functioning dome light.

Conclusion

To reassemble your device, follow these instructions in reverse order.
