Introduction

Replacing the interior door handle of your 2010 Chevrolet Camaro may be necessary if the door handle becomes damaged and cannot function correctly or if it wears out over time. The handle can be expensive to replace if taken to professionals to fix at a dealership.

Additionally, replacing your malfunctioning interior door handle successfully can prevent being locked out of your vehicle. Replacing it yourself saves money and time. The kits sold to replace the interior door handle make it very convenient to replace it with little to no time and minimal tools.

Once you’ve finished with your replacement, make sure to test out the handle to verify that it works.

  1. TkbJDNWRLVyOxWJO
    TkbJDNWRLVyOxWJO
    K1BZEDHOIGHErFDm
    MtIdBmAneodQRLbD

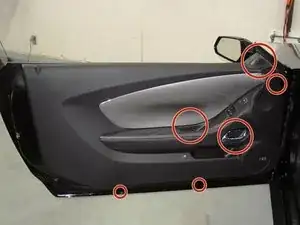

    • Remove the five bolts that attach the door panel to the door using the T30 Torx screwdriver.

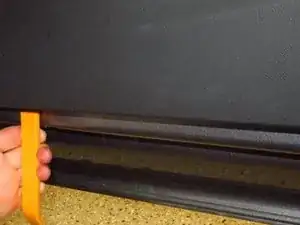

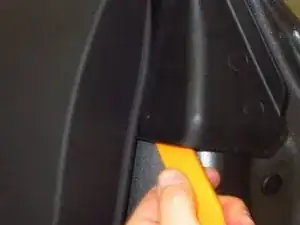

    • Use a door panel removal tool or a long-handled flathead screwdriver to pry out the outer edges.

    • Keep in mind the door card has up to 3 wire bundles attached to it. Be careful when removing it! Be prepared to support it while dealing with the wires.

  2. JGMRtN5YlYIdPDN3
    JGMRtN5YlYIdPDN3
    mNsudgMIuXeZ24Dp
    KWKsH2ovZPxPMqRJ

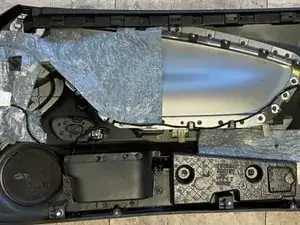

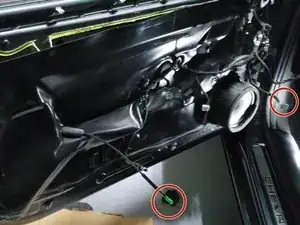

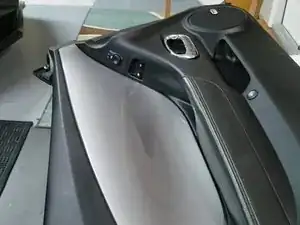

    • Disconnect the following from the door panel:

    • Unlocking cable Speaker cable(s)

    • Set the door panel aside.

    • Just use your hands to disconnect the cables.

  3. aCYoTaZjvhwJgShV
    aCYoTaZjvhwJgShV
    UDy3tITUOGZBAX6E
    aNPkRE1Tm6ybsZxw

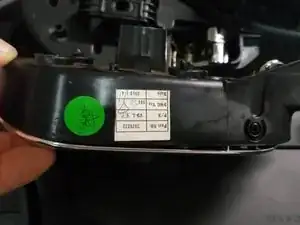

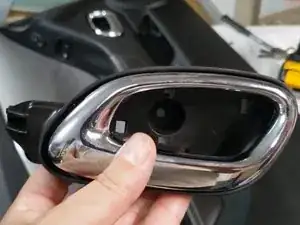

    • Grab the interior door handle replacement.

    • Unscrew the single screw that holds the original interior door handle using the T30 Torx driver.

    • Remove and replace the broken door handle.

  4. 5jiaUKneYEKclxIQ
    5jiaUKneYEKclxIQ
    IUFiuVJ1b5dbbsIF
    3VNks5TabBysxHfo

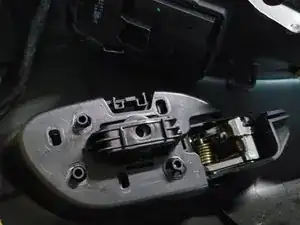

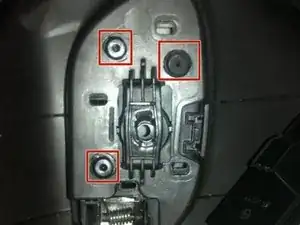

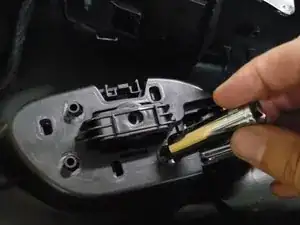

    • Unscrew the screws holding the door handle to the door panel. Use a 7mm deep socket and a racketing wrench.

    • Replace the door handle.

    • Screw the three 7mm screws.

  5. DSsIXpHebEJBVQV1
    DSsIXpHebEJBVQV1
    MDrBxU4HICDhI4il
    i2BdKGYKF3ljmLJ3

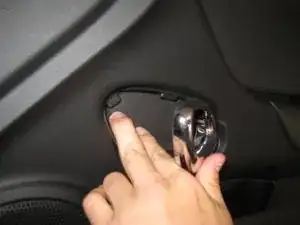

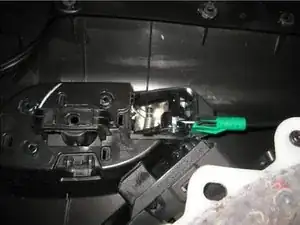

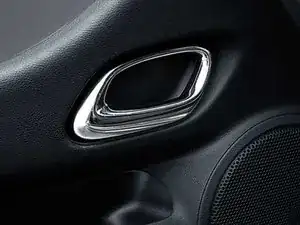

    • Double check the connection to the door handle.

    • Inspect the new door latch to make sure it is working.

    • Check the door for proper operation.

  6. 2fAL4Ia1Qa42hrVc
    2fAL4Ia1Qa42hrVc
    QvhnAtRjv51CdcZh
    cZUKg5kHJMTEcaR5

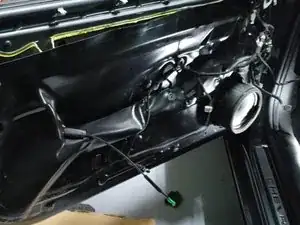

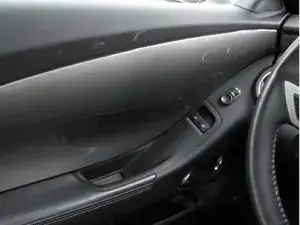

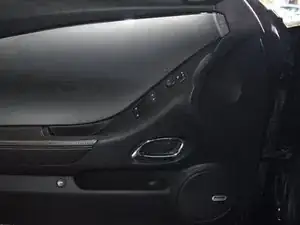

    • Reinstall the door panel (Copy step 1 backwards in order to properly reinstall the door panel.)

    • Reconnect all the cables.

    • The interior door handle replacement will function as the original.

    • You have now successfully replaced a 2010 Camaro interior door handle.

Conclusion

To reassemble your device, follow these instructions in reverse order. Test out the door handle and if it functions properly as the original door handle.
