Introduction

Not only is it illegal to operate your vehicle with broken taillights, it is also unsafe. We understand that getting started on your vehicle can be quite intimidating, but with our guide, there will be no need to go to the mechanic. Changing your tail lights are easier than you think! The following steps show how to replace the tail light of your 2017 Honda Civic.

Before beginning this guide, be sure that your car is off and in park. It is also important to use gloves to avoid getting oils from your hands on the bulb which will damage the bulb and cause it to wear out faster or break.

  1. NPYomVLIlNHBqujj
    NPYomVLIlNHBqujj
    MsC6xpPwaTFRDpYN
    • Unlock and open the trunk of the car.

    • This will allow you to access the screws once it's open.

  2. VIuWhZgEyPRBqBQ6
    VIuWhZgEyPRBqBQ6
    nQFs3OnxNLw5rMQG
    • On the exterior of the trunk, take notice of the bolts connected to the tail lights. You will have to work with these.

    • A #8 socket tends to work for most Civics.

  3. 4W6Y5vIQDadxqOJr
    4W6Y5vIQDadxqOJr
    1QSWHI2kLlGYnlNo
    OAXUUsOdnyZRUfiv

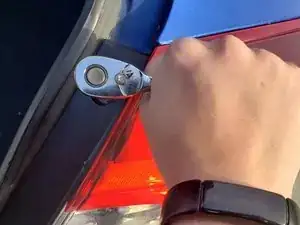

    • Attach the socket to the ratchet and loosen each of the bolts, twisting the ratchet in a counterclockwise direction.

    • Use your hand to secure the tail light so it doesn't fall off once the bolts are loose.

  4. hGEUjo2Hmxv5sQQO
    hGEUjo2Hmxv5sQQO
    VOUnUjpxMUIXGuhV
    • Once you have removed the screws, place them somewhere safe because you will be using them to reattach the tail light.

    • If the screws are damaged, you can replace them with two new 8.0 mm Phillips screws.

  5. IEnabamcmvuee3WT
    IEnabamcmvuee3WT
    DBcZyVGKux1bO6i3
    FidXqUvEMOmm1Pwo
    • Pull the tail light out from the rear bumper.

    • Since this could be a tight connection, do not be afraid to use some force or you may need to move it side to side to work it out of the socket.

    • When pulling it out, be careful that you don't rip it out as it is connected to several wires.

  6. WaltCYPbGPMUBFZJ
    WaltCYPbGPMUBFZJ
    bMNZdvRLTkf6i1yV
    5uS1xlaqFCgf2HOX
    • Once the tail light is removed, twist the light bulb connector counterclockwise to loosen and then pull it out of the socket.

  7. MSX2KoNM5YScMJsL
    MSX2KoNM5YScMJsL
    IZuaKRg6NY4RdOOm
    4XyBW4QFM5Q1ud42
    • Put on gloves and pull the bulb out.

    • Pull the bulb out with caution as it can take some force to pull it out.

    • For replacement, a 7740 size bulb is recommended.

  8. TQZUqAJNF6RqkEoY
    TQZUqAJNF6RqkEoY
    EtAQ1hriVOwDhNeQ
    sWB2xXXBaJfHyJTD
    • Replace the new the light bulb by pushing it back by pushing it back into the socket.

    • It is important to use gloves when doing this as the oils on your hands and fingers will damage the bulb and cause a shorter life for the bulb.

  9. 5HHuPr5YCLfYDuvO
    5HHuPr5YCLfYDuvO
    1ZlIsmkheq52mCFi
    OeMYQysdPYDOwSEw
    • Reattach the tail light.

    • This won’t require much force for it to stay attached.

  10. aDfq2llxDtcRaeGJ
    aDfq2llxDtcRaeGJ
    ebrLZhAiQTtGU43V
    joFMIrGJarZPmSWo
    • Use the #8 socket to replace the bolts that secure the tail light.

  11. CHKgERiZueqR2yUp
    CHKgERiZueqR2yUp
    Gao1Oi5uQiIItXtl
    • Lightly tighten each bolt in the clockwise direction, alternating between each one in order to avoid one misalignment.

Conclusion

To reassemble your device, follow these instructions in reverse order.
