Introduction

ASUS k43sv notebook computer is equipped with a mechanical hard disk. As we all know, the transmission speed of the mechanical hard disks is slow. After using it for a period of time, the computer will get stuck and wait for a long time. The solid-state disk has great advantages in storage and transmission efficiency. In this guide, people will be taught how to replace the solid-state drive for Asus k43sv notebook computers.

Replacing the solid-state drive for the laptop is a relatively simple operation, but some details should be paid attention to, otherwise, some interfaces may be permanently damaged due to improper operation. This guide will mark more details and points needing attention. You can intuitively see the positions needing attention in each step, so as to reduce the possibility of misoperation.

Of course, we need to replace the solid-state drive for the laptop. Before the operation, you should prepare a suitable solid-state drive in advance and backup the data. Before the maintenance, you should disconnect the external power supply so that the maintenance can be completed smoothly.

This guide can be more widely used in ASUS K /A series (k43, K53, A43, A53).

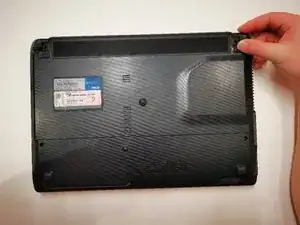

  1. iHGwPdJmSNdZtn56
    • Disconnect the ASUS k43sv laptop from the external power supply before starting.

    • Place the laptop on a flat table with its back facing up.

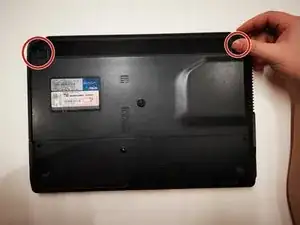

  2. aHoAEpVMFFyNwoAl
    • Slide the latch on the right side of the battery on the back of the laptop to the right to the unlocked position.

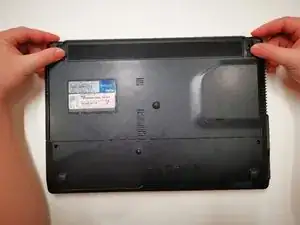

  3. I32GXQa5GgWx2EKa
    I32GXQa5GgWx2EKa

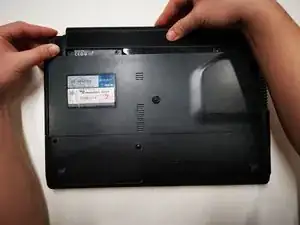

    oiGo3SMZpDusytSr

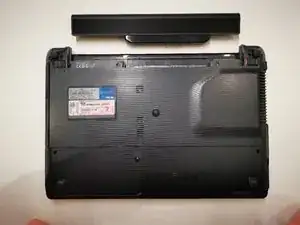

    wnEOEH3DvQS6ID2Z
    • With your left hand, slide the latch on the left side of the battery to the left and hold it.

    • With your right hand, slide the battery out of the battery compartment and place the battery away from the laptop.

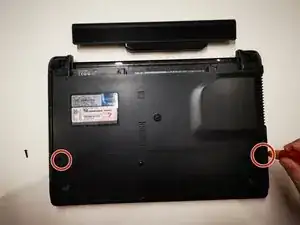

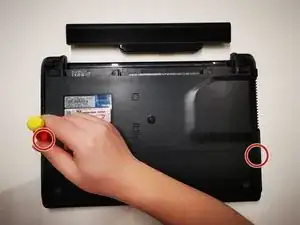

  4. AOlLEBJKe4dl1Cp2
    AOlLEBJKe4dl1Cp2
    hOK6wiBeg51QBnjP
    • Remove the two screws on the bottom of the laptop using a Phillips #0 screwdriver.

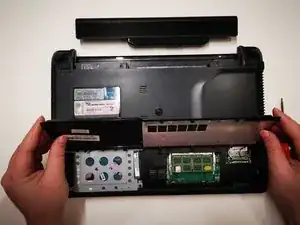

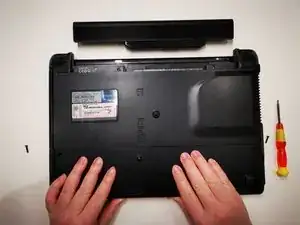

  5. XNE6NXEOowscnSfM
    XNE6NXEOowscnSfM

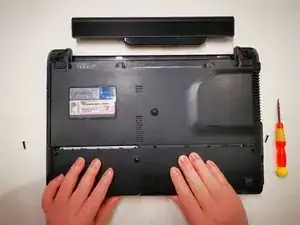

    2TPohMmKMQxAZMqZ
    wCHhcHQqY4ZteoUW
    • Slide the hard disk compartment cover towards you with both hands and remove it from the laptop.

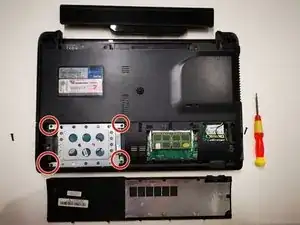

  6. PIHneKPSSvKGYGd2
    PIHneKPSSvKGYGd2

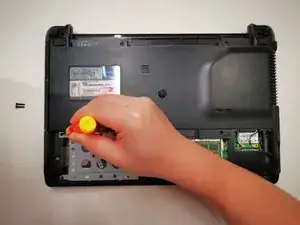

    OtNMYjTcVZnMFbMR

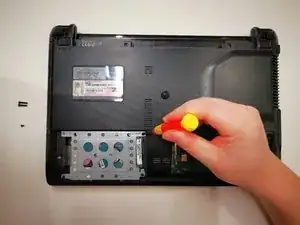

    RkS1VSASgiePBDj6
    • Remove the four screws from the hard drive support arm using a Phillips #0 screwdriver.

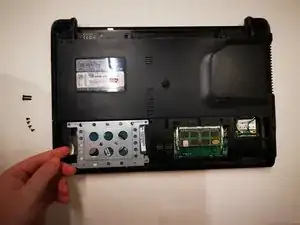

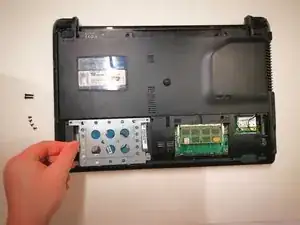

  7. Xd4Kj2QgEwNorE2E
    Xd4Kj2QgEwNorE2E
    WmiOfHXC3UFg5nBC
    GEyUHskIV2u2ULQG
    • Lift the plastic sheet on the left side of the hard drive slightly by hand.

    • Remove the hard drive and its support from the hard drive compartment.

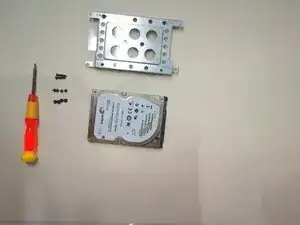

  8. jDflq4ndM4cmdhHm
    jDflq4ndM4cmdhHm
    rEYXBCfMgTROvdcZ
    seYD2UswwJmbkacY

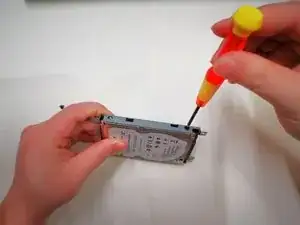

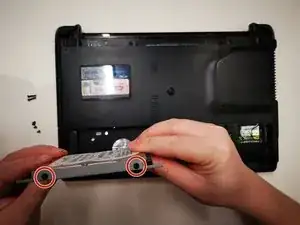

    • Remove the four screws on the side of the hard disk support using a Phillips #0 screwdriver.

Conclusion

To reassemble your device, follow these instructions in reverse order.
