Introduction

Use this guide for replacing the keyboard for your ASUS TUF Gaming FX505DY laptop. The keyboard is vital for operating any laptop for typing and the trackpad.

Only a Phillips size 1 screwdriver and a plastic pick (or a similar pointed object) are needed for this tutorial.

It is recommended that you keep track of the screws and remember where they should be when reassembling.

Make sure the laptop is turned off and unplugged before beginning the tutorial.

  1. ljDIRPG5KKBbStYh
    • Turn off the laptop.

    • Disconnect the charging cable.

    • Failure to disconnect the charging cable and power down the computer could result in personal or property damage.

    • Flip the laptop so the back is facing up.

  2. qcLjZaIUkOP1jywX
    qcLjZaIUkOP1jywX
    vRALRo3FqBpqlrmk
    • Use a Phillips #1 screwdriver to remove the five 6 mm screws that secure the back panel.

    • Use the same screwdriver to remove the six 13 mm screws securing the back panel.

  3. BYAnTX6QqWeENbTR
    BYAnTX6QqWeENbTR
    WgklSZdnPAmRbYol
    • Insert the plastic opening tool at a corner and pry up along the edges, leaving the back side with the hinges for last.

    • Do not insert the opening tool too far into the laptop to avoid damaging internal components.

  4. I4VBM5IwCPKsbutq
    I4VBM5IwCPKsbutq
    NFOlQOKWvJ4XYmUo
    • Gently lift up the back panel to release any remaining clips on the side with the hinges and remove the panel.

  5. cwZcOwkmWxWONvxj
    cwZcOwkmWxWONvxj
    UAkrvRDWjEmsQGtl
    ygcAYfvl3JLPNu1V
    • Disconnect the white and black wires from the Wi-Fi chip

  6. fYVSRTWeFjH6UrGD
    fYVSRTWeFjH6UrGD
    ynmoJbQtv5ZXTK6m
    JiWNpH26BUtvbNO3
    • Remove the white and black wires from the black tape.

  7. SSvFpPJiHFCrSBjA
    SSvFpPJiHFCrSBjA
    XKuMQqrH1MYyFbjn
    1mu5EbwVsFWyTdeu
    • Unhinge and pull the display cable from the mother board.

    • The port should be labeled "LVDS" and located between the cooling fan and the hard drive.

  8. ZVHXxdfQPUnkeDgd
    ZVHXxdfQPUnkeDgd
    ZbAKEupTPpxWgSsO
    RyBtZ32JInovnUV2
    • Unscrew and lift the hinge.

    • Some hinges may be tough to pull, proceed with caution.

  9. ZNFNpVXNjIyPYMxC
    ZNFNpVXNjIyPYMxC
    J5gvBYFJGOEBuEZE
    • Unhinge the other side, and remove the display from the rest of the computer.

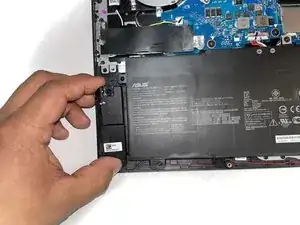

  10. nWT3iAUTPPb2X3DB
    nWT3iAUTPPb2X3DB
    vWYy3OxdPtnVC4qf
    • Lift the speakers from the pegs holding them down. Use minimal force as to not break the pegs or the speakers.

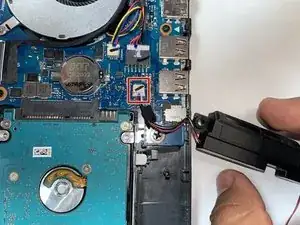

  11. sPEx3oC2uIxBZKHV
    sPEx3oC2uIxBZKHV
    yHNHTARu22Ny2L4k
    • Identify the place where the speaker cable connects to the motherboard. The port should be "SPK"

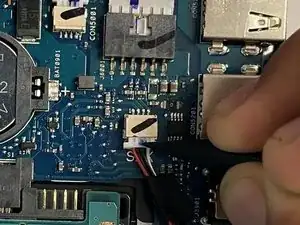

  12. eIpVx3ZOZZZoGg2r
    eIpVx3ZOZZZoGg2r
    S6lM21SXMgDhdBBj

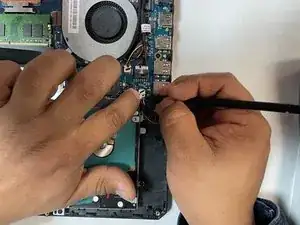

    • Pull the cable off the motherboard using a plastic pick or other pointed item and remove the speakers.

  13. JIooNWcvFUmEkTg6
    JIooNWcvFUmEkTg6
    dZPAjci1IbU66TZN
    QYpvrfbLbAlYbTsr
    • With a Phillips 0-bit screwdriver, remove eight 5.0 mm screws on the silver brackets

    • With a Phillips 0-bit screwdriver, remove two 5.0 mm screws holding the edge of the fans in place

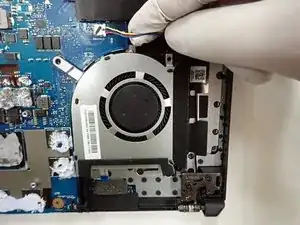

  14. FEQhv2iCsrqMTia4
    FEQhv2iCsrqMTia4
    HR6HqTdsbSBMjKmL
    nSEXxRDSPp3TZLct

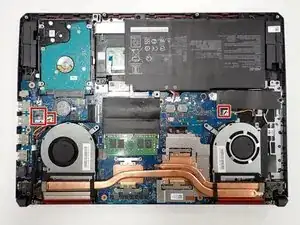

    • Gently remove all power cables connecting the fans to the motherboard.

    • Once all cables and screws are removed, carefully lift up and remove the fans and heat sink

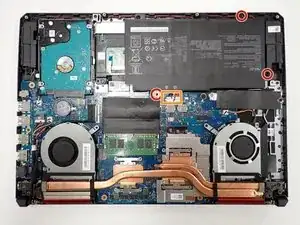

  15. B6XEgykCwY6BprH6
    B6XEgykCwY6BprH6
    FTlqxe4PEFDlSCcQ

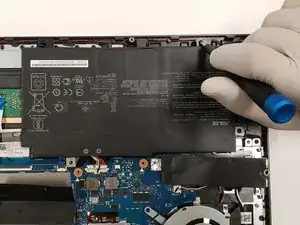

    • With a Phillips 0-bit screwdriver, unscrew four 5.0 mm screws.

    • Disconnect the primary connector cable located at the bottom left and carefully remove the module.

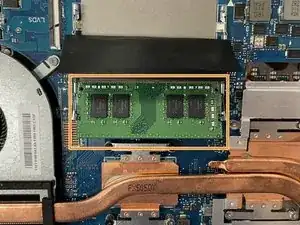

  16. cOFgp1JqfXo5IF5Z
    cOFgp1JqfXo5IF5Z
    U2NZXqEArlX3H6R4
    M6DBGXWcD3jGOrLV

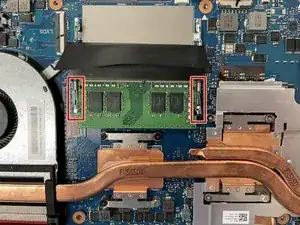

    • Removing the ram, push down unto the ram and move the metal locking tabs to the side by lifting upward slightly then moving each to their outside.

    • Pull the ram out toward the angle when the ram is sticking up at an angle when released.

  17. DG4Wg4VjguWQu1pp
    DG4Wg4VjguWQu1pp
    OaXhJOyUJOT3OY66

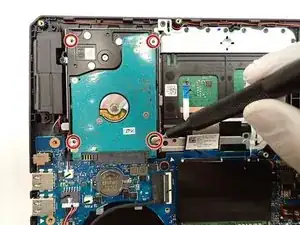

    • With a Phillips 0-bit screwdriver, unscrew four 5.0 mm top screws holding the hard drive in place.

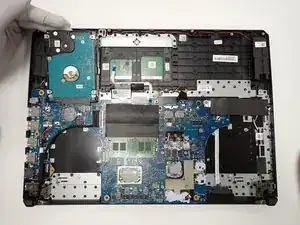

    • Pinch the top left corner with your finger and slide the harddrive out of its casing.

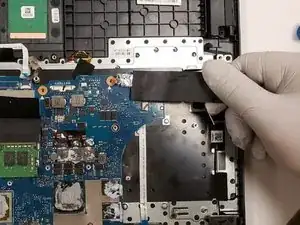

  18. klrKc43BpXQmLWWp
    klrKc43BpXQmLWWp
    RBCgn3ViuJUDmWm2
    • With a Phillips 0-bit screwdriver, unscrew two 5.0 mm screws holding SSD down to the motherboard on the right side of the board

    • Slide module out of protective casing to remove piece.

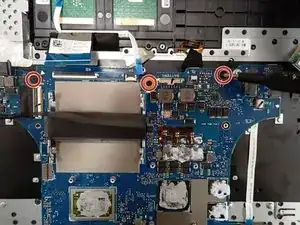

  19. FleO3XE3GTWSMwTt
    FleO3XE3GTWSMwTt
    muaDrqPRH2NQvf5J
    sdMaVKZAibO3MDMv

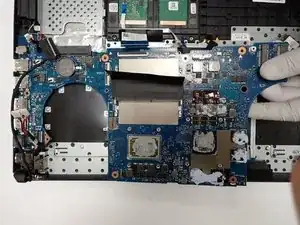

    • With a size 0 Phillips screwdriver, unscrew three center 5 mm screws securing the board in place.

    • Carefully lift the board and place in a safe area.

  20. OAf2VhgNacIEWFy4
    OAf2VhgNacIEWFy4
    DJgHDwGsOVpwLUQS
    onOJNFIVEDc56Jsx

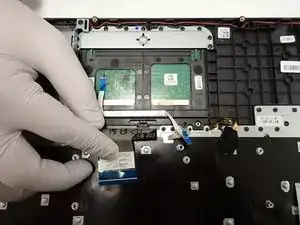

    • With a size 0 Phillips screwdriver, unscrew two 5 mm screws holding the trackpad in place located at the bottom of the trackpad.

    • Carefully unclip the connector base to remove the two touchpad cables.

    • Remove the trackpad by sliding forward and lifting up.

  21. QedVpNtMlJAeQwU5

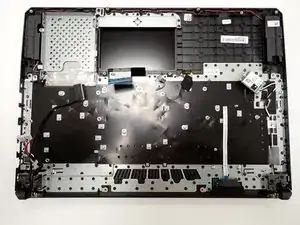

    • The keyboard is the entire body without any of the other parts attached. Do not try to remove the metal plate from the body.

Conclusion

To reassemble your device, follow these instructions in reverse order.
