Introduction
This is how you remove the keyboard on an Asus UX50V-RX05 Laptop.
Tools
-
-

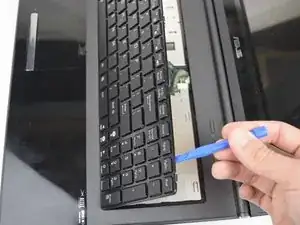

Lift the keyboard enough to expose the two ribbon connectors (LCD flex cable and flex band).
-

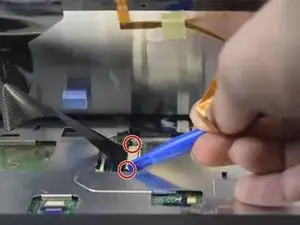

Use the Plastic Opening tool to push open the two black clips on each side of the connecting cords.
-
Remove the cable after pushing out the two black clips.
-
-
-

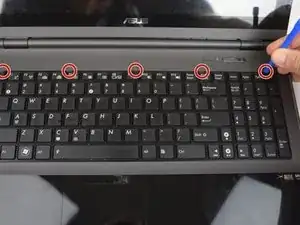

Push out each end of the black clip with a plastic opening tool or nylon spudger to remove the ribbon cable.
-
Remove the cable after pushing out both black clips.
-
Remove the keyboard.
-
Conclusion
To reassemble your device, follow these instructions in reverse order.
