AXIOO Pico M1110 PJM RAM Replacement

Written By: Cakra Diaz
  • Comments: 0
AXIOO Pico M1110 PJM RAM Replacement

Difficulty

Easy

Steps

4

Time Required

5 minutes

Introduction

  1. 3GO3TP5ga64bHWMu

    • Identify the battery locker.

    • Set the righthand locker to unlock.

    • Pull the battery while setting the lefthand locker to unlock.

  2. Mt63OaJRFeqQTVtj

    • Remove the battery.

  3. 15r3YRroZEokHcRm
    15r3YRroZEokHcRm
    PtAUiygV4MkjVMVh

    • Remove the following screw:

    • 1 long Philips #0 screw

    • Remove the cover.

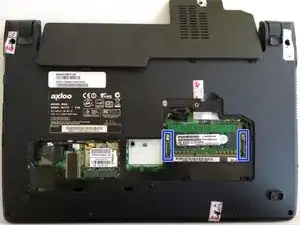

  4. YuAMe5i2TaTevUZi
    YuAMe5i2TaTevUZi
    j4EXuWasGtiQKwrT

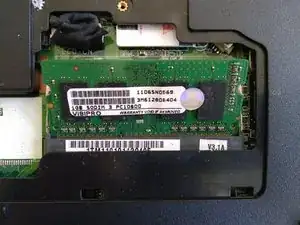

    • Identify the clipper.

    • Slide the clipper's head away from each other until the RAM pops up.

    • Remove the RAM.

Conclusion

To reassemble your device, follow these instructions in reverse order.
