Accessing Nokia 3100b DC Input

Written By: Sterling Fuentes
  • Comments: 0
Accessing Nokia 3100b DC Input

Difficulty

Moderate

Steps

10

Time Required

15 minutes

Introduction

The DC input of the Nokia 3100b is where the cell phone's charger plugs in to. This guide shows you how to access the input.

  1. SDmdONEZInqonUxw

    • Make sure your phone is turned off.

  2. W6DbfQUPlX2EDuRd

    • Press the button on the back of the phone and slide the back panel off.

    • Remove the battery by pulling it from the phone.

  3. U5eOiijHFBTelINk

    • Gently pull back the small metal frame holding the SIM card into place, and lift open the frame.

  4. tZBHbpVoV1Jf5msM

    • Retrieve your SIM card.

  5. Md1kxWLxtUcGC2cU

    • Separate the front cover from the base.

  6. 2XI16mHpWJGXSFW3

    • Using a T6 Torx screwdriver, remove the screws in the order of the colors of the rainbow.

  7. TULgKC2rMZGPjsbQ

    • Separate the screen assembly from the base.

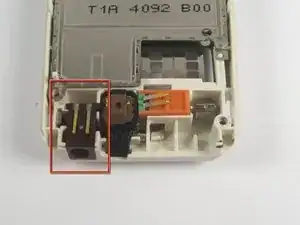

  8. 63yF2XXRcDtqBBfK

    • Note where the DC input is.

  9. lDQqyvKhuwbakRsV

    • Use a pair of tweezers to remove the DC input from the base.

  10. kjbbAPBHbrxsBSTj

    • The DC input is now removed. Replace as necessary.

Conclusion

To reassemble your device, follow these instructions in reverse order.
