Acer AL1714 Video Display Board

Written By: Christopher Kelly
  • Comments: 0
Acer AL1714 Video Display Board

Difficulty

Moderate

Steps

12

Time Required

No estimate

Introduction

  1. lwKWkgiiNPGqmVUy
    lwKWkgiiNPGqmVUy
    xPKqvNvPjPrxgSsB

    • Turn the monitor face-down.

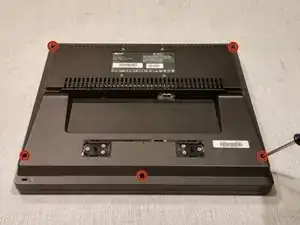

    • Unscrew the 5 screws holding back cover on.

    • (This may require flipping the monitor over and shaking the screws loose once they're already unscrewed)

  2. PO5GG6Jd2HYdu6yF
    PO5GG6Jd2HYdu6yF
    MNZsaUvGQ6elNSVR
    rt2bU3PTcFSLMsVY

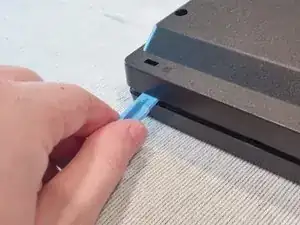

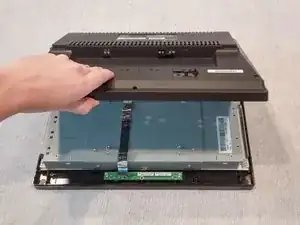

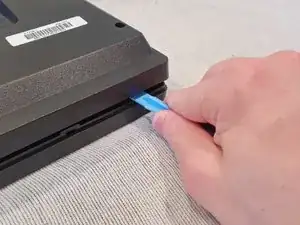

    • Take the edge tool or a metal ruler and insert it into the bezel.

    • Apply pressure and push down.

    • Do the same to the right side.

    • Once the side of the bezel facing you is decoupled, take the back cover and pry it loose.

  3. uFYQXQr5PRHbkmQh
    uFYQXQr5PRHbkmQh
    TixXrOnKRdUTZMHt
    CUcWTO6MBywq6ZIB

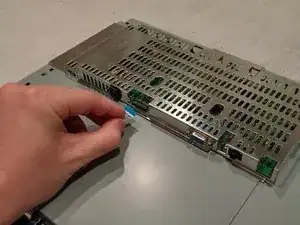

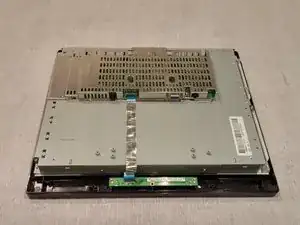

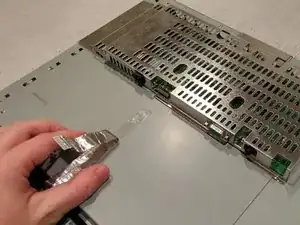

    • Remove the Flat Flex Cable from the Power Supply board located under the metal cage.

    • Pull the cord back and out of the way.

    • (It may be stuck down with adhesive)

  4. R3Y6dVN3QTkZ5AAQ
    R3Y6dVN3QTkZ5AAQ
    CJlEhpr1jn4b5n21
    Z4oNY3AGMEbBErXi

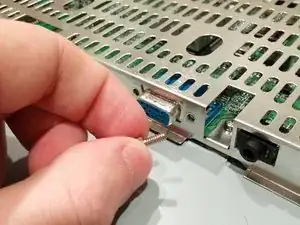

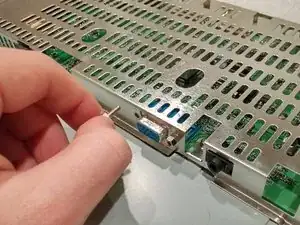

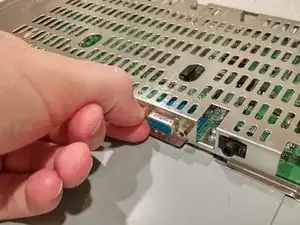

    • Unscrew the cord anchors for the VGA port.

    • (Use needle nose pliers if they're too tight for removal by hand)

  5. LOWmdEmFOehwsF5h
    LOWmdEmFOehwsF5h
    Z3nSSFJKMH63lYSu

    • Turn the monitor around.

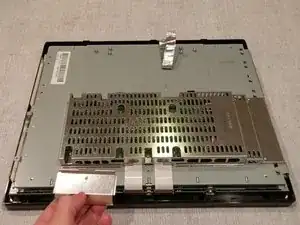

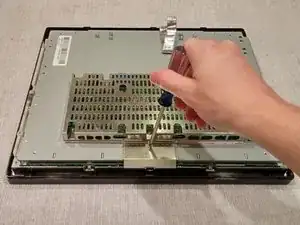

    • Unscrew the 1 screw holding the Flat power Cable cover on.

    • Lift up and remove the Flat Power Cable cover.

    • (Careful: this may be sharp)

  6. g3TJqaKO1oPNceK1

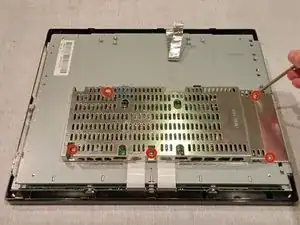

    • Unscrew the 5 screws holding the metal cage on.

  7. UbDCqVI3p3XDVGYc
    UbDCqVI3p3XDVGYc
    I3Y2ArMSCHX1VsmG

    • Turn the monitor around.

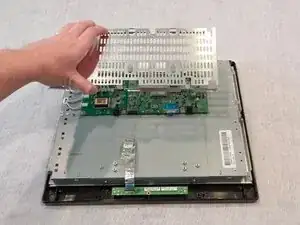

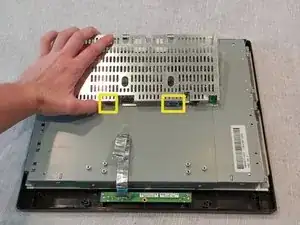

    • Lift the back of the metal cage slightly.

    • Pull the cage toward self.

    • (Must be careful to free the cover of the VGA port and the power supply input)

  8. VdeXZtixAKDK1uad
    VdeXZtixAKDK1uad
    LDh5BIOTf1ZuLXU6
    gAEpiaaZ6HHYEQDL

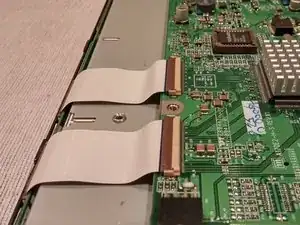

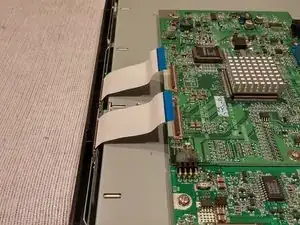

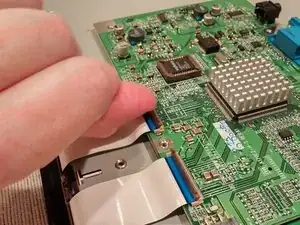

    • Lift the Flat Flex Cable holder tabs to release the cables.

    • Lift up on the Flat Flex Cables and bend them out of the working area.

  9. roZxMmoRbKwMDeAQ
    roZxMmoRbKwMDeAQ
    2kRFlsxW3FVVEIgA
    ZSGbIw53V12FbTPK

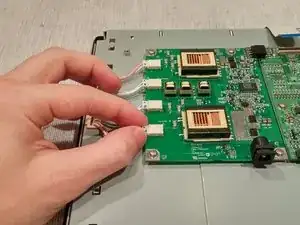

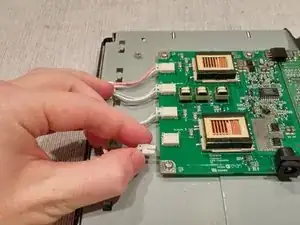

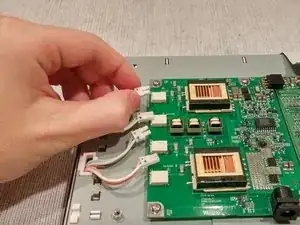

    • Unplug the 4 backlight wires from their ports on the Power Supply Board.

    • (Considering their size, the best way to unplug the backlight wires is by slowly jiggling the wires out of place)

  10. HhgV2PWdNYvx6nRK

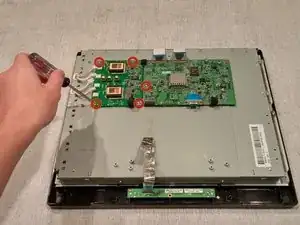

    • Unscrew the 5 screws holding the Power Supply and Video Display boards.

  11. 6wYXJAfFUpiQNGEK
    6wYXJAfFUpiQNGEK
    TjVkioOO5dVTNxMn

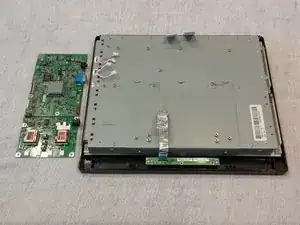

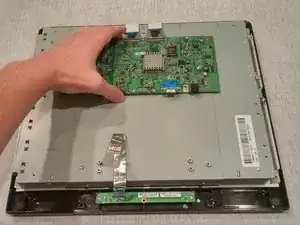

    • Lift and remove the joined boards.

  12. 1WZrw2ymwQNXFpG1
    1WZrw2ymwQNXFpG1
    WtTmfUtIXNi5Qx2Y
    Atj4nJdjMbRBJIcr

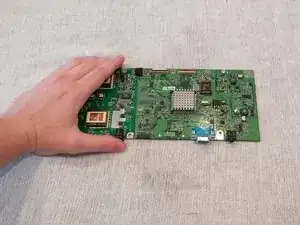

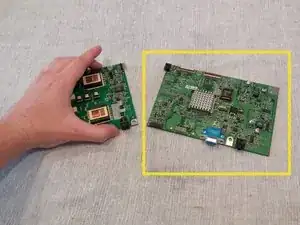

    • Carefully detach the two boards at their connector joint.

    • Replace outlined part.

Conclusion

To reassemble your device, follow these instructions in reverse order.
