Acer Aspire E1-572-6829 Keyboard and Touchpad Assembly Replacement

Written By: Anamika Menon
  • Comments: 0
Acer Aspire E1-572-6829 Keyboard and Touchpad Assembly Replacement

Difficulty

Moderate

Steps

7

Time Required

10 - 15 minutes

Introduction

The keyboard and touchpad are the main input devices in the Acer Aspire E1-572-6829 laptop. If these devices are malfunctioning and none of the steps listed in our troubleshooting guide helps you fix it, you might have to replace these components.

The keyboard and touchpad assembly in this laptop consists of the entire top panel that needs to come off before you can access the motherboard and other internal components of the laptop. This guide will help guide through the steps required to disassemble and replace the top panel assembly in the Acer Aspire E1-572-6829.

Make sure that your device is powered off and the charger is unplugged before beginning the steps in this guide.

  1. 5tDqgOmwWUKbfBw4

    • Before beginning, make sure the laptop is turned off and the charger is unplugged.

    • Flip the laptop over so that you are facing the back panel.

    • Locate the battery lock switch below the battery.

  2. eVwhFJFID1ZcHf1p
    eVwhFJFID1ZcHf1p
    jXFdVOkqjNsw2Gd3
    sDVDeQQXpJcwdgH6

    • Slide the battery lock switch to the open position using your finger or a plastic spudger.

    • While holding this switch open, use your other hand to slide the battery out from the back of the laptop.

    • Your battery is removed. You can now let go of the lock switch.

    • To reinsert the battery, make sure that it's tabs are lined up with the laptop and that it is facing in the right direction. Then slide it straight back in without using the lock switch.

  3. I4I4cIMX6btLU35W
    I4I4cIMX6btLU35W
    1CfbkCfaciuR1yvW
    qMJQQisRYLtM1rLq

    • Use a Phillips #0 screwdriver to remove the seventeen 8 mm screws that secure the back panel.

    • Use a plastic spudger to pry open the lower back panel from its top edge.

    • Lift the panel up and out to remove it.

  4. gINFiIEunQvwUVn5
    gINFiIEunQvwUVn5
    AGIxY2wBpoPhtAjN
    R6Di1ZrETjJ5LHUZ

    • Use a Phillips #0 screwdriver to remove the three 8 mm screws on the inner side of the lower back panel.

    • Use the pull tab on the left side of the 2.5 inch hard disk tray to slide it out of the SATA port.

    • The hard disk along with the 2.5 inch tray can now be safely removed.

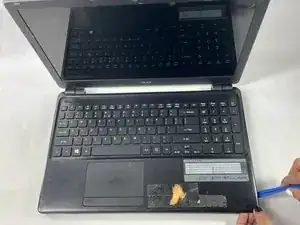

  5. IAPFncjEWCWyFjaL
    IAPFncjEWCWyFjaL
    4gJZboQbIHixPg3C
    hTxVgZCfkqmQKReZ

    • Flip the laptop over and open the lid so that the keyboard side is facing upwards.

    • Use a plastic pry tool to pry open the tabs holding the top panel on around all sides of the laptop.

    • Once all the tabs are free, carefully lift up the top panel to open it slightly.

    • Do not lift the top panel up too much or with excessive force since there are delicate ribbon cables on the inside that need to be disconnected before the assembly can be detached.

  6. SNYscFuEuWAphnkU
    SNYscFuEuWAphnkU
    aCXQ4OYBtZM6XfuZ
    lqDtYXnRqrDQQgUU

    • Carefully detach the 3 ribbon cables connecting the top panel to the motherboard.

    • Be careful when removing the ribbon cables. Some of the connectors might have small plastic tabs that need to be lifted up before the cable can be detached.

    • The 3 ribbon cables from left to right correspond to the power button, the touch-pad, and the keyboard respectively.

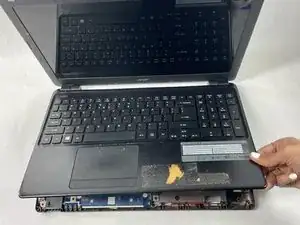

  7. 1Bj3e5JAYBrMrHoW
    1Bj3e5JAYBrMrHoW
    eqwtA6yiKTbpEl2N
    yItACSNWPEHLOCTA

    • Once the ribbon cables are detached, the entire top panel consisting of the keyboard and the touch-pad assembly can safely be removed from the laptop.

Conclusion

To reassemble your device, follow these instructions in reverse order.
