Amazon Fire 5th Generation Battery Replacement

Written By: Maximilian Plavcan
  • Comments: 11
Amazon Fire 5th Generation Battery Replacement

Difficulty

Moderate

Steps

3

Time Required

20 - 40 minutes

Introduction

The Amazon Fire 5th generation uses a 2980 mAh rechargeable Lithium-ion Battery Pack. When replacing the battery pack, ensure that the proper safety and protective gear are used to avoid potential harm.

  1. hftIIQ5QCjNdvDXy
    hftIIQ5QCjNdvDXy
    OoljNOhExi6H1mGN

    • Ensure that your device is turned off.

    • Remove any micro-SD card that may be installed in the Fire. Failure to do so could damage the micro-SD card itself or the micro-SD card reader on the Fire.

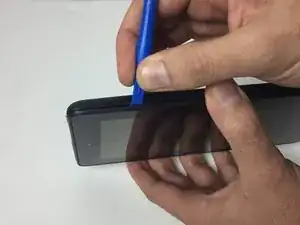

    • Holding the Fire firmly, wedge a plastic opening tool into the crease on the edge of the device.

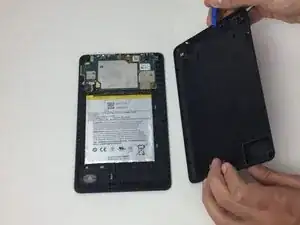

    • Slowly work the plastic opening tool around the device until the entire back cover releases from the front of the device.

  2. CYxpCUmn2Nn6jQsw
    CYxpCUmn2Nn6jQsw
    CDmvgjDSe4SdhSSQ
    1posGqIJRUD4XThM

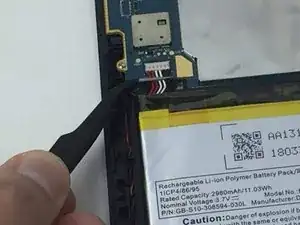

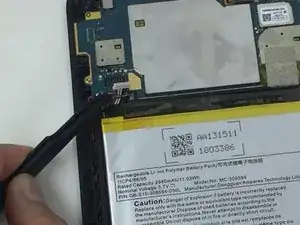

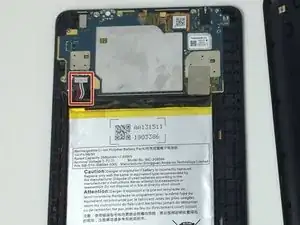

    • Using angled ESD precision tweezers, lift up on the battery cables to separate the battery connector from its socket.

    • Be sure to lift the battery connector cables themselves and not the actual socket. Doing this step incorrectly could damage the connector.

  3. Yn5JMrjGCPIPRW2I
    Yn5JMrjGCPIPRW2I
    Dt3lVEjfjOteEvMv
    AEgqHYSfDwXqmToF

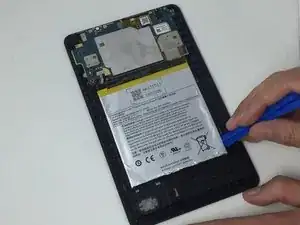

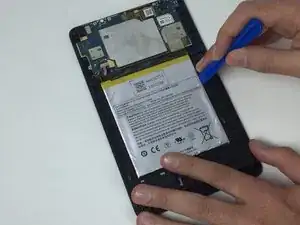

    • Carefully and slowly work a large plastic opening tool along the edge of the battery pack. Angle the tool to pry it up.

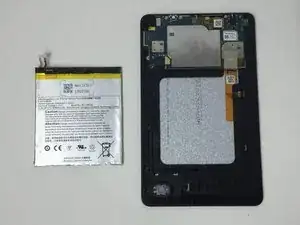

    • When you have successfully lifted the battery pack up on one side or corner, carefully wedge the opening tool under the pack about 1/2" and work around the rest of the sides.

    • Be careful not to bend the battery. Don't use too much force, as it can damage the battery.

    The replacement went smoothly and. while it is listed as Moderate Difficulty, I found it quit easy. Even with my 72 year-old hands, using the iFixit tool kit. It took me about five minutes from opening the case to closing it again.

    Cal C -

    I found a replacement battery at https://www.ebay.com/itm/372639534862?mk...

    Cal C -

Conclusion

To reassemble your device, follow these instructions in reverse order.
