Introduction

This guide shows you how to replace keyboard keys on an Amazon Kindle DX and uses the “previous page” key as an example. The “previous page” key has the less than symbol (<) on it and is located on the right side of the Amazon Kindle DX.

Prior to using this guide, test the keys to confirm that the keyboard is not working properly. To determine whether a key is faulty, press on the key to see if it performs the correct function. If not, the key is faulty. For example, when you press down on the “previous page” key of your Amazon Kindle DX and it doesn’t bring you to the previous page, the key is faulty.

This guide requires you to use the Phillips screwdriver, sizes PH0, PH00, and PH000, as well as a precision tweezer and opening tool. You must purchase a replacement key for the faulty key you are attempting to replace.

Before you begin, turn the Kindle off and unplug it from any external power source.

  1. KOIJLTADQWNyqyZs
    • Flip the Kindle so the back is facing upwards.

  2. jnyCNtnhORaZvVDM
    • Push an opening tool against the top part of the device to pop it open.

  3. aI2rQkFlqm63MPux
    • Remove the plastic piece.

  4. MBa1gsPEkjcARiuf
    MBa1gsPEkjcARiuf
    aHTnSWbVHK2sBGWW
    • Remove two 40 mm screws (one on each corner) using a Phillips #00 screwdriver.

  5. HLpNpQu2pksZyqQn
    HLpNpQu2pksZyqQn
    gSHKIgu4hWOdDoIq
    • Use the opening tool to remove the back panel.

  6. IKujr3hTWS4nEphG
    IKujr3hTWS4nEphG
    Gi4SlfxxJC5KyxNf
    • Remove two 30 mm screws securing the battery with a Phillips #00 screwdriver.

  7. sGqFjxCxIwBdDpaD
    sGqFjxCxIwBdDpaD
    5DMGJqZWwBBNBOla
    • Remove the battery from the device.

    Good guide. Concise. Simple. Easy to follow. My Kindle DX lives once again!

    Moejj ORaisin -

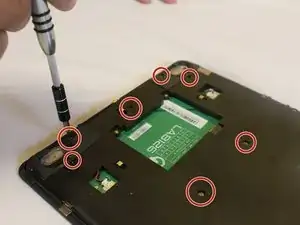

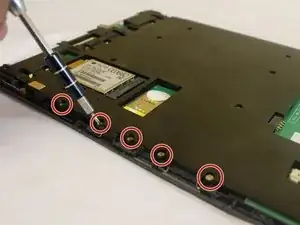

  8. cnUunPbqZZAUIvrX
    cnUunPbqZZAUIvrX
    vELFuMUFbnnhjaNl
    wYlAFJSA6bJeMcUk
    • Remove the 30 mm screws from the midframe using a Phillips #000 screwdriver.

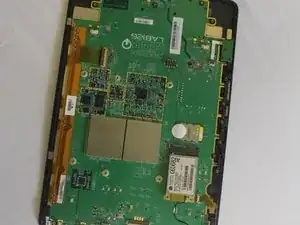

  9. IZUAeiWKBlOSQJbW
    • Remove the midframe to reveal the motherboard.

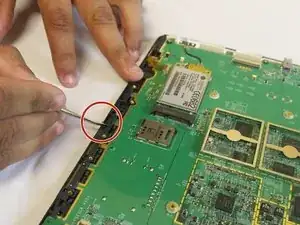

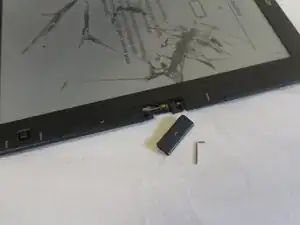

  10. kIYVJToMhB5GCjXJ
    kIYVJToMhB5GCjXJ
    q1eMOGaiIyGSgArT
    • Remove the "previous page" button from the side function keys using a pair of tweezers.

Conclusion

To reassemble your device, follow these instructions in reverse order.
