Introduction

The Kindle DX e-reader was introduced by Amazon in 2009.  It comes with a QWERTY keyboard and a d-pad.  The DX model comes with free worldwide 3G internet access that requires a SIM card within the device.

If the SIM card malfunctions in a Kindle DX, the user will not be able to download e-books via the 3G network.

This guide will provide step by step instructions to replace the SIM card.

 Warning: Turn off the Kindle DX e-reader before replacing the SIM card.

  1. EWoGZscQSh26ZZxy
    • Use the plastic opening tool to push against the top part of the e-reader to open the device.

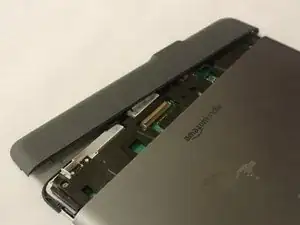

  2. lSndgB5vJuApJ2vB
    • Remove the plastic top.

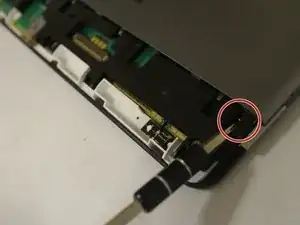

  3. FsKhkhmitbSSot5f
    FsKhkhmitbSSot5f

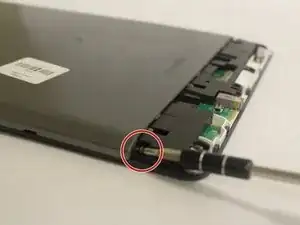

    usxYK1gj5W6LHhHn
    • Locate the two small screws on each corner.

    • Remove the two 40mm screws with a Phillips #0 screwdriver.

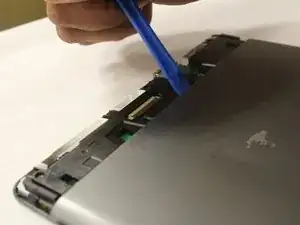

  4. M6UEWdmoXUAZBvvl
    • Use the plastic opening tool to take the off the metal plate.

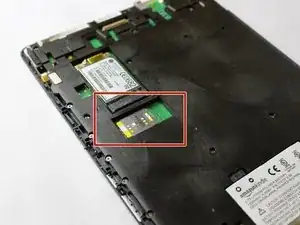

  5. WHPT4jL4aJWtesrD
    • Locate and remove the SIM card slot.

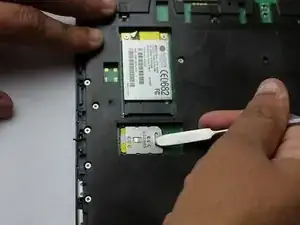

  6. IySTPV5MhXGp1rhV
    • Use the spudger to push the metal lid backwards, as pictured.

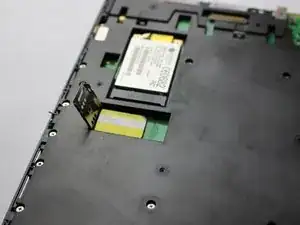

  7. 12kLJNVcJAbfRhOF
    • Open the lid to replace the SIM card.

    any ideas about what to with the network settings if it doesn't work? how to input new ones?

    Matthew Gladstone -

Conclusion

To reassemble your device, follow these instructions in reverse order.
