Answering Machine Speaker Replacement

Written By: Troy Chester
  • Comments: 0
Answering Machine Speaker Replacement

Difficulty

Moderate

Steps

5

Time Required

9 minutes

Introduction

Is the speaker on your answering machine not working well? This is the guide for you!

  1. EtAPXDrvy6orDTcc

    • Turn the base over. You will see four 11mm Phillips #0 screws, one in each corner.

    • Use a screwdriver to remove all four 11mm Phillips #0 screws.

  2. eayRXU5UQVpoBkmu
    eayRXU5UQVpoBkmu
    GxxYiNLxOcgnqIvi

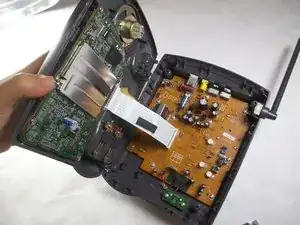

    • Locate an easy seam for entry and insert the metal spudger to separate the plastic. Use the spudger in multiple places if necessary.

    • Opening the base may require exerting significant force as it is bound together tightly. This step can be dangerous.

    • The spudger is designed to make this step easier.

  3. 1buQy1g6yBtTS4M4
    1buQy1g6yBtTS4M4
    UjJxkxSOTAuw6QJM

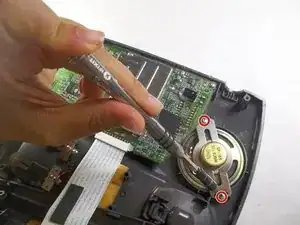

    • Locate the speaker at the top left of the base as pictured. It is the silver, conical component. Two 7mm Phillips #0 screws hold the speaker in place.

    • Use a screwdriver to remove the two 7mm Phillips #0 screws.

  4. 1dtvqemPOT2fDWGx

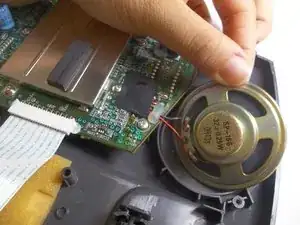

    • Finish speaker removal by cutting both the black and red wires.

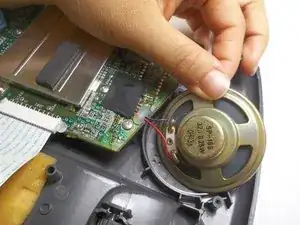

  5. XBxs56AsC3RgyDgm
Conclusion

To reassemble your device, follow these instructions in reverse order.
