Introduction

Many people are a little confused about how to expand or replace storage on their gaming laptops, and this guide will help you upgrade your computer faster. There are also a lot of notes in there about some of the problems I encountered when replacing storage, so I'll share them with you. The device manufacturer is Gigabyte; the device model is AORUS 15P XD.

Prior to starting the repair, power off your laptop and unplug from the charger.

  1. 2MPBLpn6MQYuhvFx
    2MPBLpn6MQYuhvFx
    QImXcjVdTFCDGMMV
    • First, make sure the power is off and disconnect the power.

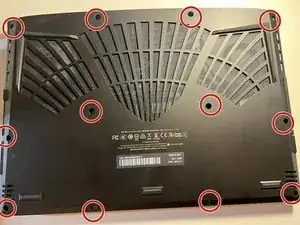

    • Use a Torx security screwdriver to remove twelve 1.2 mm screws from the back case.

    • Use an opening tool to gently separate the front and back case. Work your way around the perimeter of the laptop and undo the clips holding it together.

    • Remove the back case.

  2. vgHUl5AVnkTIONXL
    vgHUl5AVnkTIONXL
    WpARnhQEeUEBl2mk
    kwleGloOBvMf6SYp

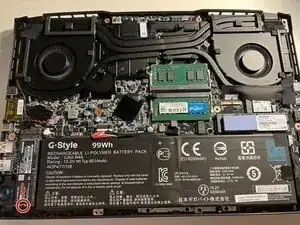

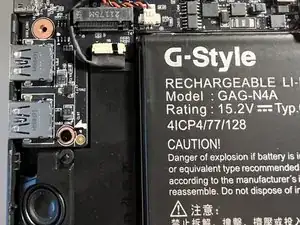

    • Use a JIS screwdriver to remove the single 8 mm screw securing the SSD in place.

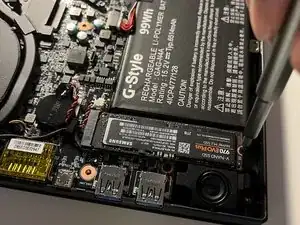

    • Slide the SSD out of the socket connected to the motherboard.

    • Slide your new or upgraded SSD in the socket securely and replace the 8 mm screw.

  3. 5NomRoUypTQEmTRi

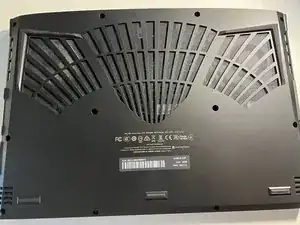

    • Set the back case on the laptop but don't replace the screws yet.

  4. sieJbGAt2uwxjXBS
    sieJbGAt2uwxjXBS
    1KQrojV4BGLfBYB5
    1EReZJsDmnthp1MV

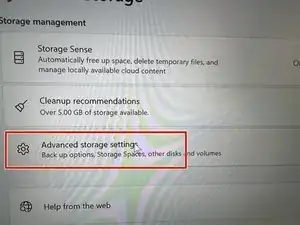

    • Turn the device back on and open the advanced storage settings.

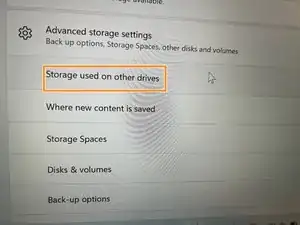

    • Choose the storage used on other drivers.

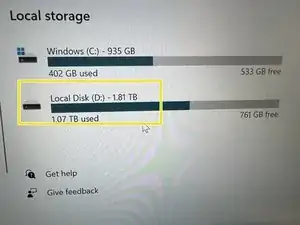

    • Next, check if the storage you installed is recognized in local disk storage.

  5. jaCLKOCwAnZRc6WD
    jaCLKOCwAnZRc6WD
    gmENFoBsrgFerPCR

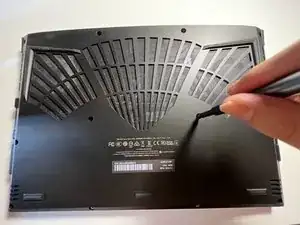

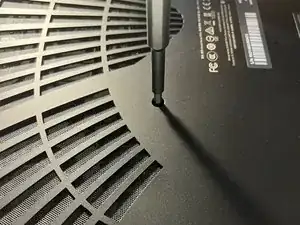

    • If the storage is detected, replace the screws.

    • If your storage is not detected, open the back case to make sure the SSD is plugged in tightly to the socket. If not, go back to Step 2.

Conclusion

To reassemble your device, follow these instructions in reverse order.

Weitao Shi

Member since: 03/07/22

121 Reputation

3 comments

Thanks, does the new SSD need thermal pad as well? And if so what thickness?

Martijn Spits -

Yes. what thickness is required? and which one is gen 3 and gen 4 slots?

Mark Jose -

I read that the one slot can be used for gen3 or sata, however I don't see where might the sata drive can be placed inside this laptop.

Mark Jose -
