Introduction
Follow these steps to replace the Aorus X7 v2 I/O Board for better sound quality and performance. Replacing the board can improve hardware support, graphics performance, and increase computer speed. It's recommended to replace the board every 2-4 years, but it can last up to 8 years. All you need is a new board, standard tools, and this guide to get started.
-
-

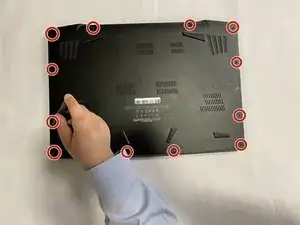

Use the T5 Torx Screwdriver to remove the 12 screws on the bottom of the laptop. Once the screws are removed, lift off the bottom panel.
-

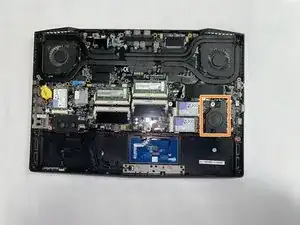

Locate the speaker on the right-hand side of the device.
-

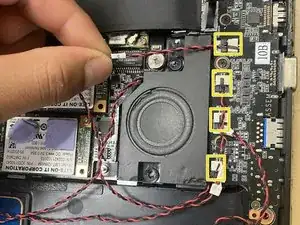

Remove the four red and black braided cables by gripping the black plastic piece on each cable and gently tugging to separate it from the white outlet.
-
-
-

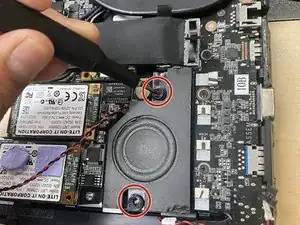

Use the Phillips #0 Screwdriver to remove the two screws holding the speaker in place. Lift off the speaker panel.
-

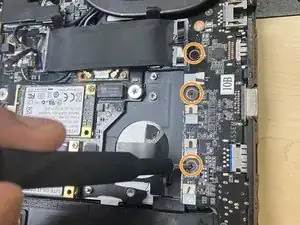

Use the Phillips #0 Screwdriver to remove the three screws holding the board in place.
-

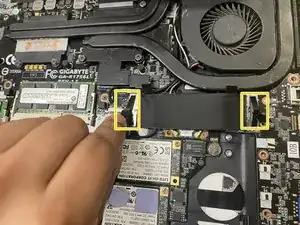

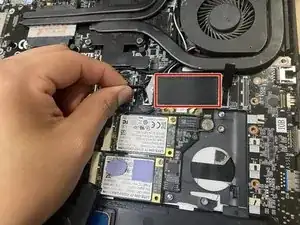

Carefully pull the two black tabs on either side of the black ribbon to disconnect them from the board.
-
-
-

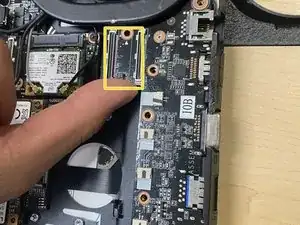

Gently pull off the inner black ribbon to remove it from the board.
-

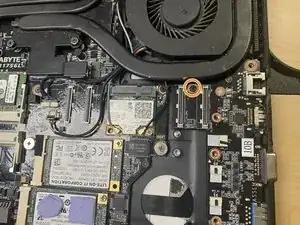

Use the Phillips #0 Screwdriver to remove the screw.
-
Place a finger under the board (see photo for location reference) and slowly lift up to remove the board.
-
Complete these steps in reverse order to install your new I/O Board.
