Aoson R103 Speakers Replacement

Difficulty

Difficult

Steps

4

Time Required

15 - 45 minutes

Introduction

This guide replaces the Aoson R103 Speakers (it does require soldering). This guide is most used to fix distorted or broken audio and will require you to dismantle and redo electrical connections. Be careful not to burn anything while soldering and make sure to disconnect power from the battery to ensure you do not damage the device or yourself via electric shock.

  1. SagehbCiQFZehduv
    SagehbCiQFZehduv
    KUYwEESEm1Y1hZAV
    M5u5CpVIT6C5UEHp

    • Turn off the device using the power button.

    • Using fingernails/a pry tool, separate the back panel of the device. This may decent force as they are connected by push tabs.

    • Be careful not to drop the device when separating, this could cause permanent damage.

    • This will expose the motherboard of the device.

  2. xVsXeOiY5JuKJZ1N
    xVsXeOiY5JuKJZ1N
    4BTJVxClsqssxjYC

    • Use your fingers to unclip the ribbon connecter and then pull the ribbon out of the connector.

    • This ribbon connects the power button and stops the device from turning on; allowing further procedure.

  3. eZLa3oVRhYrs1YAQ
    eZLa3oVRhYrs1YAQ
    URUJGMew4mZL5CAA
    qUQuCcid6RxYG5VV

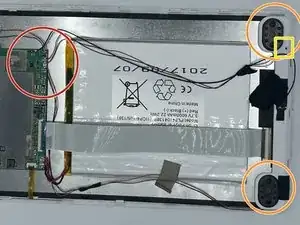

    • The motherboard connections to the speaker are circled, they will be needed later.

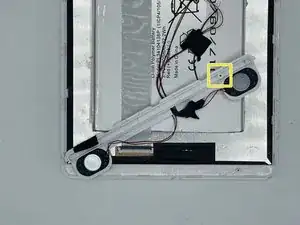

    • The two speakers are circled in orange, they are attached to a plastic piece via a screw.

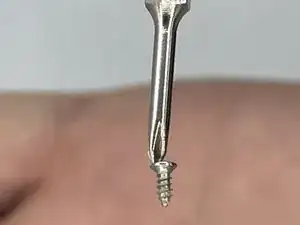

    • The 4.0mm long philips-head 00 screw will be disconnected at the Boxed area where the plastic disconnects.

    • Be careful not to disconnect the back ground wire when taking the plastic off.

  4. TI23auIPefKRF5SO
    TI23auIPefKRF5SO
    ky1OSoFFmVNZ4ipO

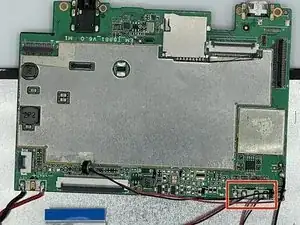

    • The box contains the four (4) soldering connections for the two speakers. Unsolder the old speakers and solder the new speakers in.

    • Be sure to match up the appropriately placed speaker to its correct positive or negative node. mixing these up could distort audio or fry the speakers.

    • Note: solder over a piece of paper where you can mark each node with a red or black marker to denote positive and negative nodes for the left or right speaker.

Conclusion

To reassemble your device, follow these instructions in reverse order.
