Introduction

Use this guide to replace a cracked or broken filter box with a regular plastic box. This guide will provide you with the instructions and tools to repair your aquarium top filter. The added benefit you can achieve from this guide is that you can customize the filtration system best suited for your aquarium. The tools listed in this guide are easily accessible and can be found online or in any hardware store.

  1. BFSy3hnIUBIEBXLL
    BFSy3hnIUBIEBXLL
    4pAUX5iAgfRkPkuB

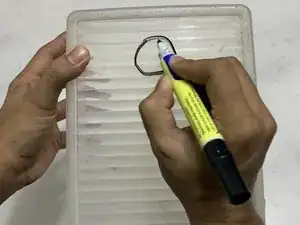

    • Using a black sharpie marker, mark the box for accurate holes.

    • Make sure the hole is a little bit smaller than the soft PVC pipe.

  2. nPbJTYDFOvsBQToh
    nPbJTYDFOvsBQToh
    EUfUNn3Iss6KH4pO

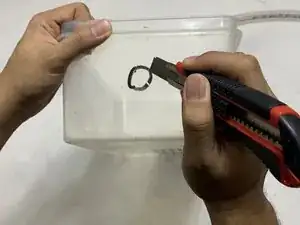

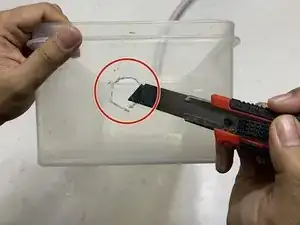

    • Use the utility knife to cut a hole in the marked position to attach the pipe.

    • Be very careful as the box is difficult to cut.

  3. IvHGpBMlFpsIMYkU
    IvHGpBMlFpsIMYkU
    s442XZxaNcdSNZL4

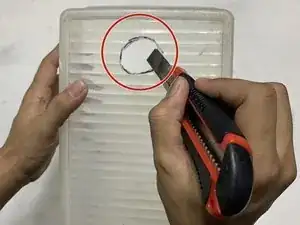

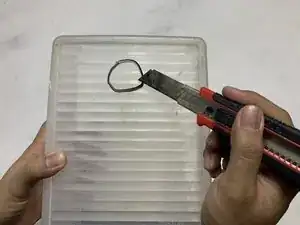

    • Using the same utility knife, make a hole in the bottom of the plastic box for the water to come out.

    • Be very careful as the box is difficult to cut.

  4. bbZgbJFIAZdYBZLT

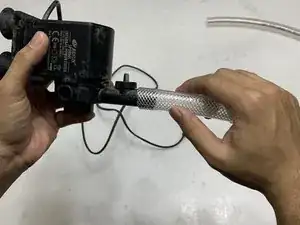

    • Attach the soft PVC pipe with the aquarium powerhead.

    • Make sure it is properly connected.

  5. l61LtVHqRamUG1vU
    l61LtVHqRamUG1vU
    S5YNVCBC62BEHqTn

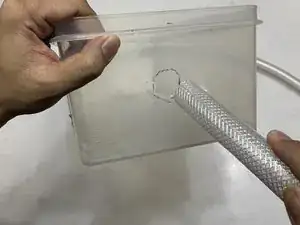

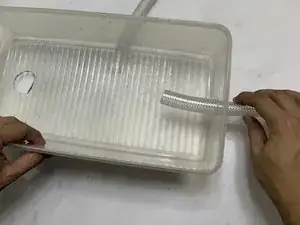

    • Insert the soft PVC pipe in the plastic box.

  6. mZW1FhTxJ6ojFLYv
    mZW1FhTxJ6ojFLYv
    11SOwTJT3LyChXBv
    bV6xWVc3LDRC5Pjo

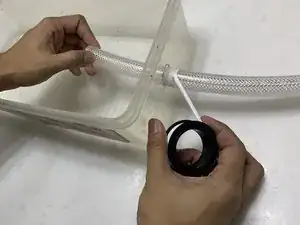

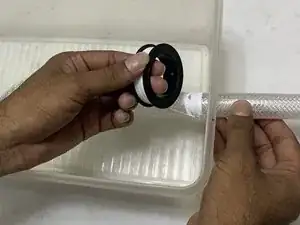

    • With a telfon tape properly wrap the soft PVC pipe for no leakage of water.

  7. 5XFwAWXftXmnnW5v
    5XFwAWXftXmnnW5v
    1NG3El5OnMAM5syp
    B3FKDskKpOSsceGx

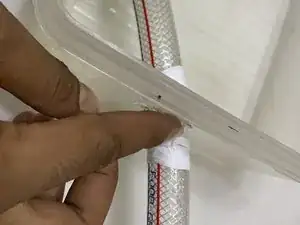

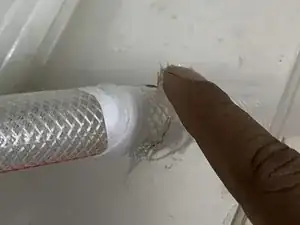

    • Use aquarium-safe silicone glue to seal the soft PVC pipe with the plastic box.

    • Make sure to let the silicone glue dry for 30 minutes.

  8. qarliX2HUSqZeKln
    qarliX2HUSqZeKln
    hPglBaI2Ex3GTrEA
    MURORLxKoKGDTWYe

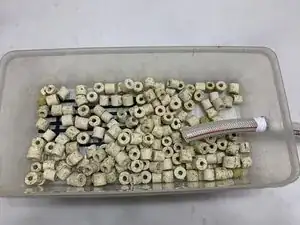

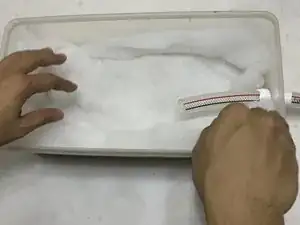

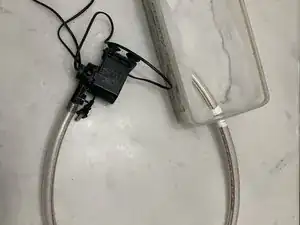

    • Add your desired filter media best suited for your aquarium.

Conclusion

To reassemble your device, follow these instructions in reverse order.
