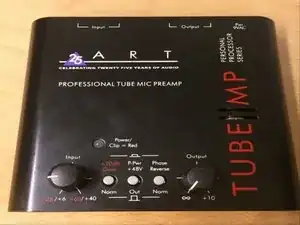

I will show in this Guide how to replace the 12 AX7A Tube in your Tube Art MP easily and without complications.
Parts
-
-

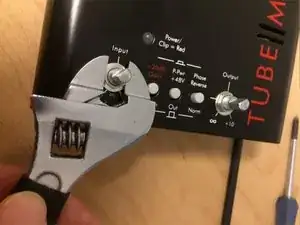

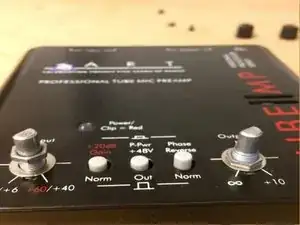

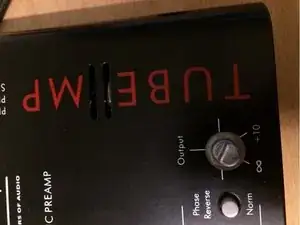

Use the Smart Wrench to loosen the two In- and Output controllers. Attach the Smart Wrench below the controller.
-
Be careful not to damage the surface.
-

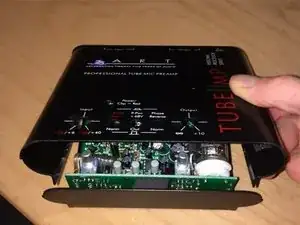

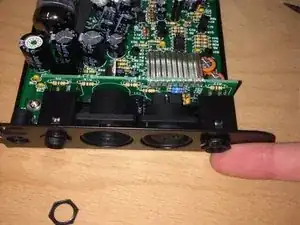

Now you can lift up the top of the device, and the mainboard appears.
-
-
-

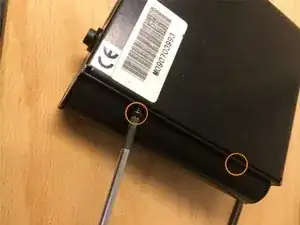

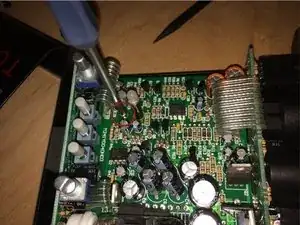

Use the PH 1 to unscrew 2 screws on the motherboard.
-

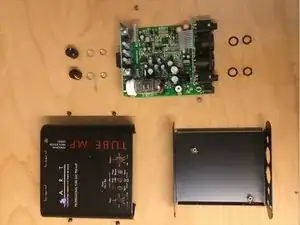

Now you can take the board out completely
-
Attention: There are again 2 washers.
-
-
-

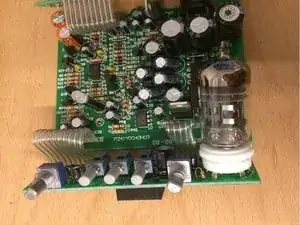

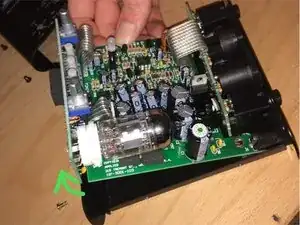

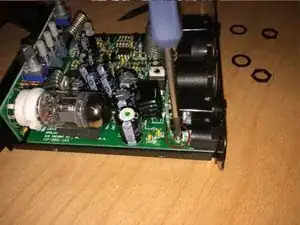

Carefully bend the tube up to get a better view
-

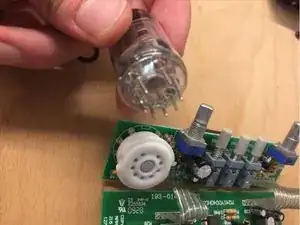

Remove the tube with a cloth from the socket, a metal spudger can help
-

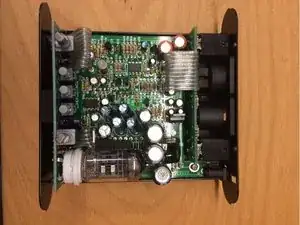

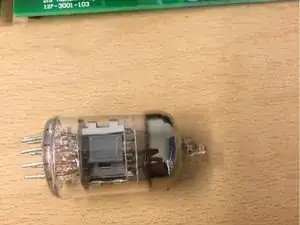

Insert the new tube
-
-
-
Finally just reassemble all parts.
-
Be careful to tighten all the screws and ports, otherwise internal vibrations could cause damage to your device.
-
First put the cinch ports in to get the mainboard back in place.
-
Congratulations you did it :)
