Asus N56VM Optical drive Replacement

Written By: Stanky
  • Comments: 0
Asus N56VM Optical drive Replacement

Difficulty

Easy

Steps

4

Time Required

No estimate

Introduction

  1. ma3bi1FDMrXPHCOe

    • Remove the battery and the AC power

  2. 4RhyBndXV46Es2Qj
    4RhyBndXV46Es2Qj
    OiypYqdtkLCtjHuj

    • Remove the M2x4 screw of the bottom cover

    • Remove the bottom cover by sliding it downwards

  3. yZxWuP1dydUVEDxx

    • Remove the screw holding the optical drive

  4. X3POvilQtH1KnPcx

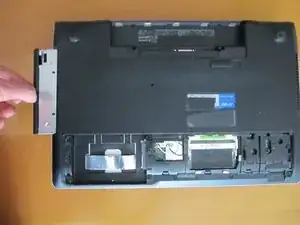

    • Pull out the optical drive

Conclusion

To reassemble your device, follow these instructions in reverse order.
