Asus ROG GL551J Battery Replacement

Written By: Jason Nguyen
  • Comments: 3
Asus ROG GL551J Battery Replacement

Difficulty

Very easy

Steps

3

Time Required

30 seconds

Introduction

This guide is a prerequisite to completing any other replacement guides for the Asus ROG GL551J. Removing the battery removes power from the device to prevent potential harm from electric shock.

  1. 4ShcQTOjcxp4RIFX

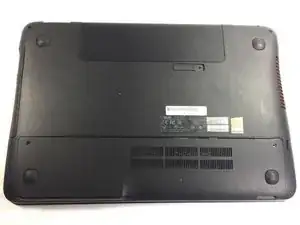

    • Lay the device on a flat surface with the battery facing up.

    • Be sure to wear ESD or Rubber gloves to protect the computer components.

    could provide a link on where to purchase screens or a link for this specific model, they are hard to find

    Anika Rozeboom -

  2. gWlnqjSBWM3iji3H

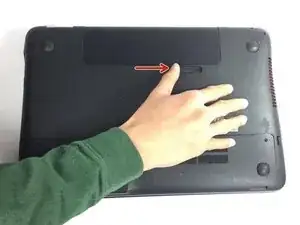

    • Push the latch found below the battery to the unlock position.

  3. GVoXFXgE1eJiaRcQ

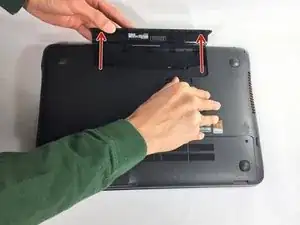

    • Pull the battery out.

    Image unclear

    Anika Rozeboom -

Conclusion

To reassemble your device, follow these instructions in reverse order.
