Asus TUF Gaming FX705G Fan Replacement

Written By: Britney Smit

Comments: 10

Difficulty

Moderate

Steps

Time Required

5 - 10 minutes

Introduction

You may need to replace one or both fans in your Asus TUF Gaming FX705G if you experience overheating in your laptop. This can decrease efficiency and be harmful to the computer’s motherboard. During this process, be cautious of wires and make sure to avoid discharges of static electricity. This a very crucial, as discharges can cause elements of the laptop to short circuit.

Tools

Parts

Asus FX Fans - DFS5K12304363H

Step 1

Remove the eleven Phillips #0 screws that secure the back cover.

Step 2

Use the iFixit opening tool to lift the back cover's seam, then insert the spudger parallel to the back cover and lift gently upward.
You will hear pops as the back cover releases.

Hey so the screws are two different lengths. This would be more helpful if you could point out which screws go in which sockets!

paul -

Step 3

Remove the three Phillips #00 screws from the battery housing.

Step 4

Disconnect the wire from the motherboard, and lift the battery from its housing.

Step 5

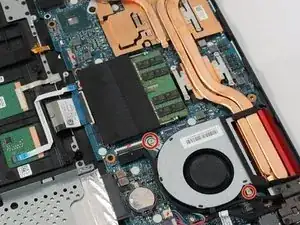

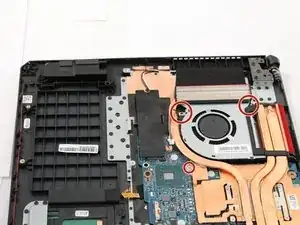

Remove the five Phillips #00 screws from the fan casings.
The left fan has three screws and the right fan has two screws.

Step 6

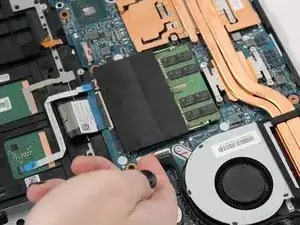

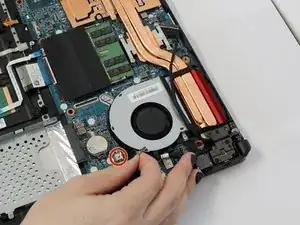

Unplug the cables that connect the fan to the motherboard.

Hi! I’m having a problem removing the cable in the first picture, can’t seem to figure out what to pull out. Can you help me?

Renz Badillo - 02/12/20

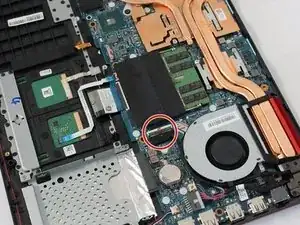

The cable ends in that long, flat piece circled. Flip up the locki g mechanism on top of it, and that long flat piece should slide right out!

Tyler Lange - 02/12/20

Step 7

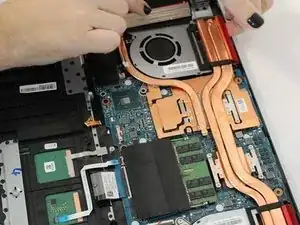

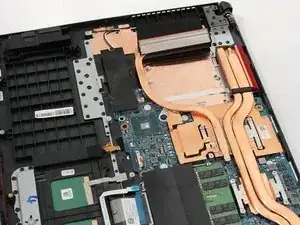

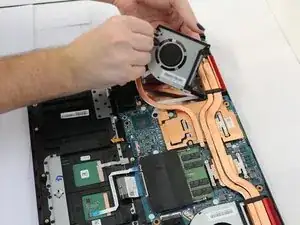

Lift the motherboard to unclip the housing clip on the back of the fan.
Remove the fan.

How hard was it to lift the heat pipe to get the back part of the fan housing out from under it? I have to do this to my fx 505dt which is almost identical with the same fans I have the fans but a nervous to do it. I have some experience, i have upgraded my own ram, hard drive , m.2 drive and my network card. I don't want to remove the heat pipes if I don't have to but it looks like you didn't have to is that correct? Thanks for any advice.

danluse1987420 - 06/10/20

You don't have to remove it, but it certainly can make it easier. If i remember correctly, the pipes are easy to remove, so long as you identify all of the screws. That said, you have much more experience than I did when I took this apart, no need to be nervous! You will do just fine.

Tyler Lange - 08/10/20

You will have to lift the pipes slightly to get the fan out, but removing them shouldn't be nessicarily.

Tyler Lange - 08/10/20

Could you clarify which is the GPU fan and which is the CPU fan.

Thank You.

1857classic - 05/12/20

If you are looking at the bottom of the laptop either the fans or the parts they cool are named where they plug into the motherboard. The designation of each fan should be in small white blocky font. Pretty sure the GPU is on the left and is marked as “GPU” or RADEON.

But it doesnt really matter, the instructions are the same for both fans except the one has three screws and the other has two. Both should be replaced at the same time.

Andrew Stanton - 06/01/21

Conclusion

To reassemble your device, follow these instructions in reverse order.
