Introduction
This guide will show the steps to take out and replace a defective Ram for the Asus UL30VT-X1.
Tools
-
-

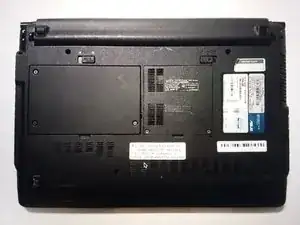

Locate the two screws on the ram panel.
-
Unscrew the two screws using a Phillips Head #00 screwdriver.
-
-
-
Locate the small cut out at the bottom of the ram panel.
-
Lift the rem panel up with your finger and remove it to expose the ram.
-
-
-

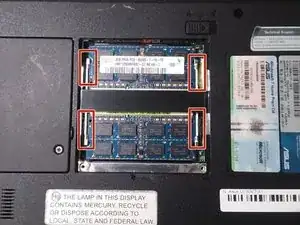

locate the white clips on the sides of the ram.
-
Push the white clips to the side so the ram pops out
-
Afterword use your fingers to pull the ram towards you.
-
Conclusion
To reassemble your device, follow these instructions in reverse order.
