Asus ZenBook UX303U Screen Assembly Replacement

Written By: Dean Anderson
  • Comments: 13
Asus ZenBook UX303U Screen Assembly Replacement

Difficulty

Moderate

Steps

8

Time Required

10 - 15 minutes

Introduction

This guide will show you how to replace the screen on an Asus ZenBook UX303U laptop.

  1. RnAAXb2Q6HjJ6g55

    • Remove the two round rubber feet at the hinge-edge of the laptop.

    The process took me about 30 minutes. If I were to have to do it again then I could probably do it in 10 minutes now that I know what is involved!

    Jon Kerridge -

  2. XsL3OIeWIuDc4LOB

    • Remove the eleven 4 mm Phillips #00 screws from the back panel.

    These screws on other models are Torx T5 or T6, not Phillips

    Dylan Warburg -

    T4 screws on all but the two under the rear rubber feet; those are Phillips PH0 (and my model had two square rubber feet).

    Gregg Stanley -

  3. ueRA4jDHCiQAuPYT
    ueRA4jDHCiQAuPYT
    EkyRch2jtebMhwgg

    • Using a plastic opening tool pry the back panel off of the laptop.

    I lift more than the last photo shows. Dark rubber with plots, visible on photo are blocking the opening.

    djibe -

  4. Kw4qKXKZPXYwXZXu
    Kw4qKXKZPXYwXZXu
    HfO2yjagBcZI2ZtU

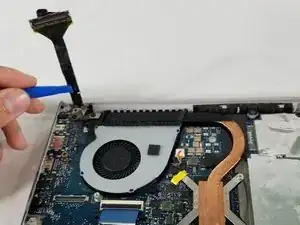

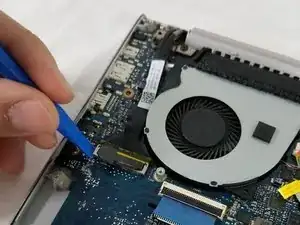

    • Remove cable connecting the screen assembly to the the motherboard.

    Disconnect the battery FIRST! Using a flat PLASTIC spudger, slide it sideways under the clip and wiggle upwards until connector comes loose.

    Gregg Stanley -

  5. swwGVxRAPEaRO2IZ
    swwGVxRAPEaRO2IZ
    gbTFd4HbLxc5NSXB
    WFee2bMYQX5KyKT1

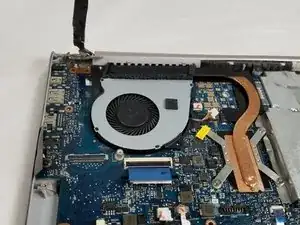

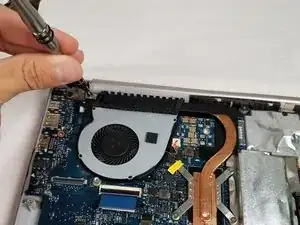

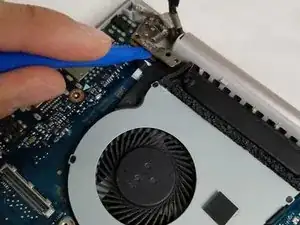

    • Remove the three 4mm Phillips #00 screws in the hinge to loosen the motherboard fan.

    • Lift the hinge up.

    • It is not necessary to remove the motherboard fan to replace the screen assembly.

    On my model there were only two Phillips screws as the third (inner most screw) was removed during bottom cover removal (Under the rubber foot).

    Gregg Stanley -

  6. PZWYpEutUrQdMMUM

    • Remove the three Phillips #00 screws securing the hinge to the IO board.

    On my model there were only two Phillips screws as the third (inner most screw) was removed during bottom cover removal (Under the rubber foot).

    Gregg Stanley -

  7. ldXXLW6crbdvXCTZ
    ldXXLW6crbdvXCTZ
    L5TUETMBbPVP6UOE

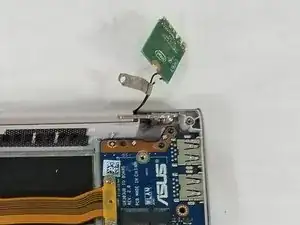

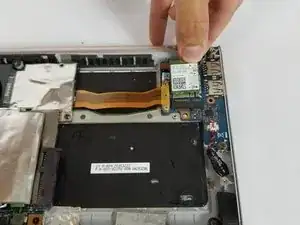

    • Remove the Wi-Fi card by pulling it straight out of its connector.

    You don't need to remove the screw on the wifi module and remove the card; just unclip the two antennas from the card.

    Gregg Stanley -

  8. hILStteGqknWfcrH
    hILStteGqknWfcrH
    crKCosixM3BCCurm

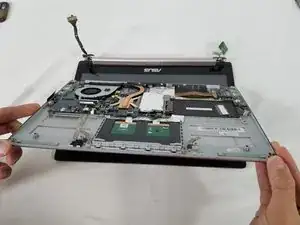

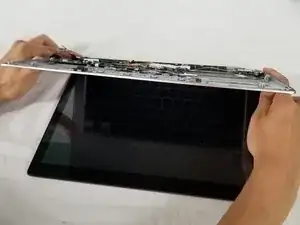

    • Lift the entire lower assembly up and off of the hinges securing it into place.

Conclusion

To reassemble your device, follow these instructions in reverse order.
