Introduction
The Asus Zenbook UX21e has an easily replaced wifi card. After following the battery replacement guide, you unscrew the wifi card, disconnect a couple of cables, and finish by removing the wifi card itself.
Make sure when you are disconnecting the small cables to keep them in their relative positions, as they can be pulled out from the resting area.
-
-
Using a T4 Torx screwdriver, unscrew the ten screws lining the bottom cover. Then, proceed to remove the bottom cover by sliding it out parallel toward the back of the computer.
-
There are two length of screws. Eight screws are 3mm and two are 5mm. The two 5mm screws always go into the two center holes along the back edge.
-
-
-

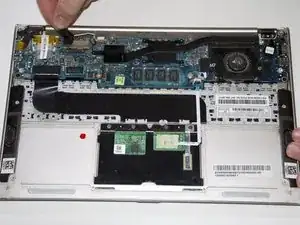

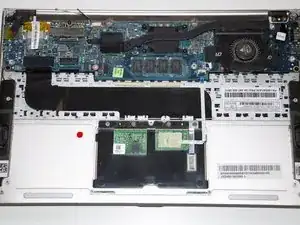

Using an iFixit opening tool and your other hand, gently lift the connector up from the tape wrapped around the connector wires and pry the connector from the motherboard.
-
-
-

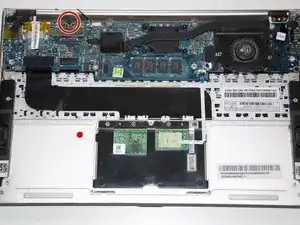

Unscrew the single 3mm with a Phillips #1 screwdriver at the front end of the WiFi card slot.
-
Remove the WiFi card by sliding the card parallel to the device toward the screen edge of the device. Once clear of the slot, lift up the WiFi card and remove it from the device.
-
To reassemble your device, follow these instructions in reverse order.
