BaByliss-Expert Plus 2000 Hairdryer Thermal Fuse Replacement

Written By: Tiago
  • Comments: 4
BaByliss-Expert Plus 2000 Hairdryer Thermal Fuse Replacement

Difficulty

Moderate

Steps

7

Time Required

30 minutes

Introduction

  1. MLYQfMKldUVWUx2f
    MLYQfMKldUVWUx2f
    JRQXAgGZItqpkeYu

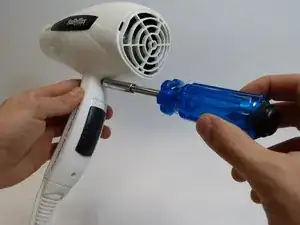

    • Before disassembly, unplug the device.

    • Make sure the device was not on for the last 10 minutes, because it might still be hot.

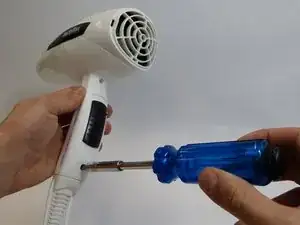

    • Unscrew the two screws on the handle with the spanner screwdriver.

  2. RFhvBWGOVFEtw5JV
    RFhvBWGOVFEtw5JV
    21DfusaDykN21EgU

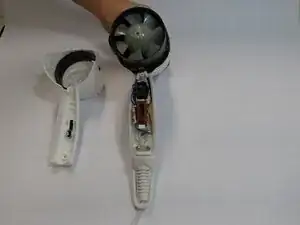

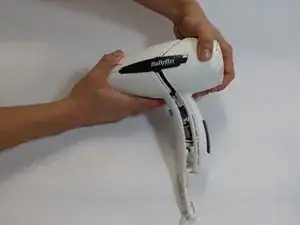

    • Pull the case in opposite directions.

    • You might need a prying tool if the black components don't come out easily.

  3. uqORvQZigFCEhoul

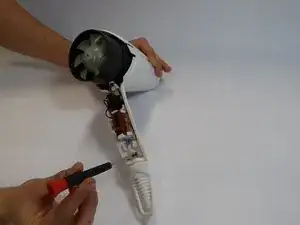

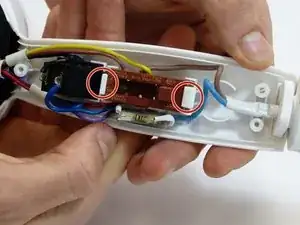

    • Unscrew the remaining two screws inside the handle with the Phillips screwdriver.

  4. HPFXWAgaMgLDUoQH
    HPFXWAgaMgLDUoQH
    B66AVegyGBdhnh6b
    sWIbEa31QWZKFWXo

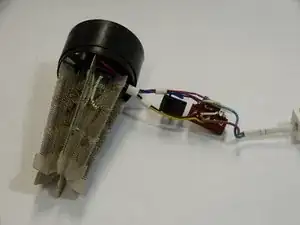

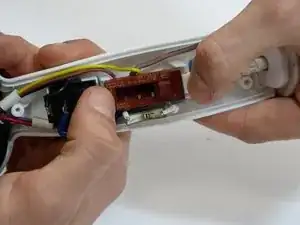

    • Push the inner components out of the handle.

  5. xsSJpQFVNmxsQowR
    xsSJpQFVNmxsQowR
    MvFY1ZjTMKuiswaC

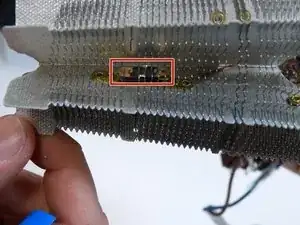

    • Locate the thermal fuse.

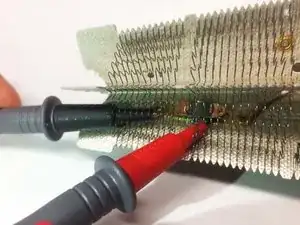

    • Test the thermal fuse for continuity using the multimeter.

    • Make sure the multimeter is set to 200 ACV and bring the probes toward thermal fuse.

    • The circuit is closed and properly functioning if the multimeter displays varying numbers.

    • The circuit is open if the multimeter displays non-varying numbers or no numbers at all.

    It looks like bimetal hair dryer thermostat instead of thermal fuse.

    DanielSSS -

  6. OOixkCPF6wuJCkZG

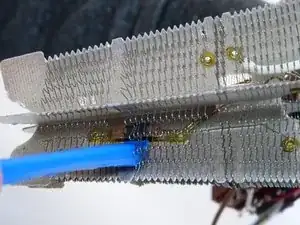

    • To replace the thermal fuse, use the prying tool to extract the object.

    • To remove it, wedge it back and forth until it comes free.

    • You don't need to take out the gold piece under the thermal fuse.

  7. 5JBDswqJnCH1rMNA

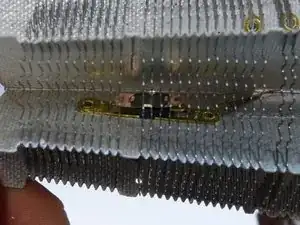

    • Replace the old thermal fuse by a new one.

    What is reading for the thermal fuse ?

    Lukito Lukito -

Conclusion

To reassemble your device, follow these instructions in reverse order.

Author

Tiago

Member since: 05/12/16

49 Reputation

2 comments

Does anybody know what is the small silver cylinder next to the thermal fuse? It is inline with the neutral AC from the handle switch, looks like it could be a diode or possibly a resistor, though it really resembles nothing I have seen before. My inoperable unit shows no continuity through this device either direction, so I presume it is bad….but I have no idea what to replace it with!

Richard H -

This is the thermostat, not the “thermal fuse’’ !!

ilko M -
