Introduction

  1. NPZtcp3ah6OPLixh
    • Place the device face down on a flat surface, so that the screws on the back are facing the ceiling.

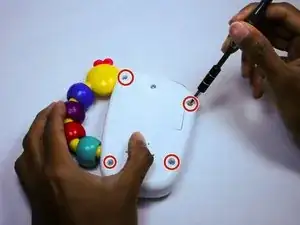

  2. jSWuys1mp5wRvm4H
    • Using a screwdriver loosen the four screws connecting the body of the device together.

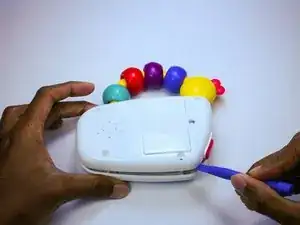

  3. PxkFdADPTbsBRJml
    • Once unscrewed, pop the back of the device off using the plastic opening tool.

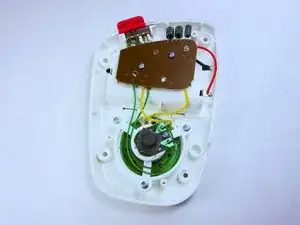

  4. OWFKKB4FLAW5dkJ6
    • Take the back of the body and put it aside. We will be working with the back part of the device.

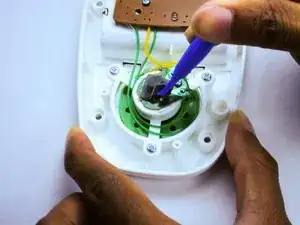

  5. RUnGAroBQNXRkQN1
    • Remove the rubber button by popping it out with the plastic opening tool.

  6. ehpeWneuC2d5PDWU
    • Loosen the screw on the chip with a screwdriver.

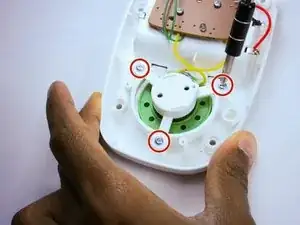

  7. YECRLvIxySgLMfYH
    • Once the chip is off, loosen the screws on the plastic enclosing the speakers.

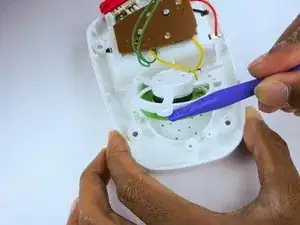

  8. 5nARq4VOP3s1OJCM
    • Using the plastic opening tool, pop the plastic enclosing off.

Conclusion

To reassemble your device, follow these instructions in reverse order.
