Back Panel

Written By: Ryan Williams
  • Comments: 0
Back Panel

Difficulty

Easy

Steps

3

Time Required

5 minutes

Introduction

This guide will help you take apart your Garmin Dezl 760LMT to reach and replace needed parts.

  1. GhElHAIExlyB1wvE
    GhElHAIExlyB1wvE
    UQhMt3VXsYuB2VGC

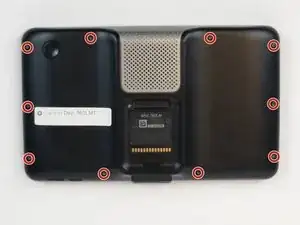

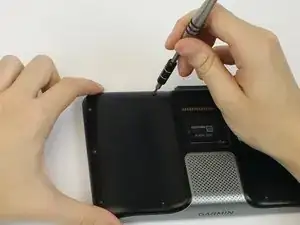

    • Using a Torx T6 Screwdriver, remove the ten 7mm screws from the back panel.

  2. hfoSQwaKyKwUwQuO
    hfoSQwaKyKwUwQuO
    egwKBpGKadySIGOG
    q1URsYLumjL52fEe

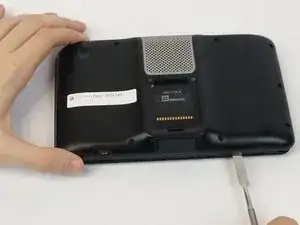

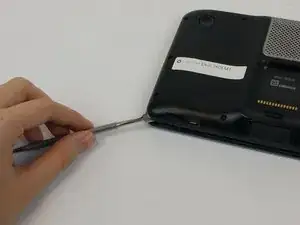

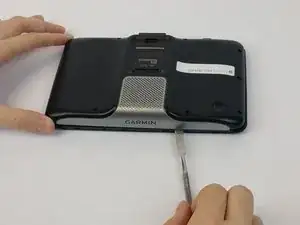

    • Using a metal spudger, pry the device apart.

    • To recombine them, line up the two halves of the device and press them together.

  3. xApZnQYHULdYFKxc

    • Turn the device over, laying it on its back with the screen facing upwards.

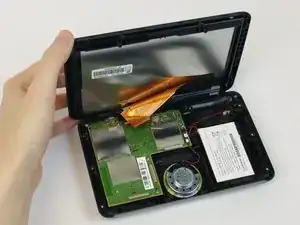

    • Lift the front panel away from the silver part of the back panel.

    • Make sure not to rip the ribbon cable that is connected to the screen and the motherboard.

Conclusion

To reassemble your device, follow these instructions in reverse order.
