Base Replacement

Written By: Han Shih
  • Comments: 0
Base Replacement

Difficulty

Moderate

Steps

2

Time Required

10 minutes

Introduction

Prerequisite Only

  1. EtAPXDrvy6orDTcc

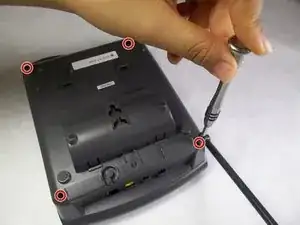

    • Turn the base over. You will see four 11mm Phillips #0 screws, one in each corner.

    • Use a screwdriver to remove all four 11mm Phillips #0 screws.

  2. eayRXU5UQVpoBkmu
    eayRXU5UQVpoBkmu
    GxxYiNLxOcgnqIvi

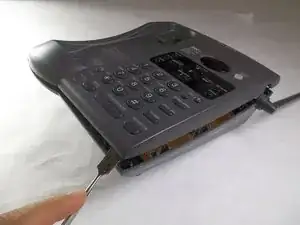

    • Locate an easy seam for entry and insert the metal spudger to separate the plastic. Use the spudger in multiple places if necessary.

    • Opening the base may require exerting significant force as it is bound together tightly. This step can be dangerous.

    • The spudger is designed to make this step easier.

Conclusion

To reassemble your device, follow these instructions in reverse order.
