Battery Replacement on an Asus Q524U

Written By: Zachary Franz
  • Comments: 4
Battery Replacement on an Asus Q524U

Difficulty

Moderate

Steps

6

Time Required

20 minutes

Introduction

I am providing a proposal to replace and fix the current battery in my Asus Q524U personal computer. I have only owned this computer for a relatively short period of time, although the battery has already gone bad due to continuous overcharging and must be replaced. I intend to produce a comprehensive guide that will list all required tools/parts to complete the project along with detailed steps explaining the entire process. This will be an easy to follow guide that will help people replace their old computer battery for less money and extend their laptops lifespan that much longer.

Required Equipment: Torx T5 screwdriver; #00 Philips screwdriver; Opening/prying tool; new computer battery.

  1. mG3qhatBCkGXNGy6
    mG3qhatBCkGXNGy6
    khkVwhBYWR2tTVyi
    VOFR2KeW1CLKCMTv

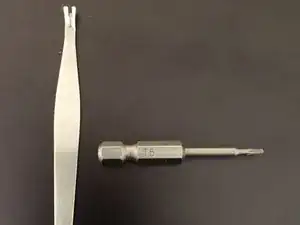

    • Remove all 10 screws from the backplate of the computer using a Torx T5 screwdriver.

    • Make sure to keep all screws in a safe place, they are small and it is very easy to lose track of them.

  2. VxNGmAJouQiEHH2G
    VxNGmAJouQiEHH2G
    1AdnXbb46dKb5DYm

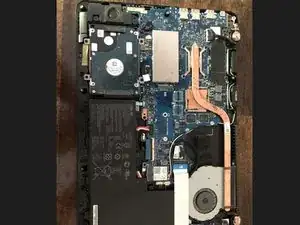

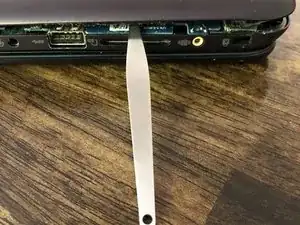

    • Use the prying tool to help maneuver and separate the back plate off of the computer safely. This will expose important hardware and internal parts.

  3. QxZQAHWyOgW1j4XT

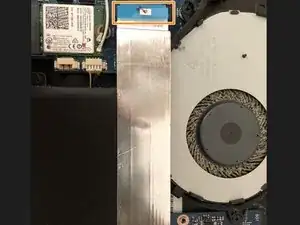

    • Pull lightly on the blue tabs until the silver bridge is safely free.

    • Once the bridge is removed the battery is then accessible.

  4. RCcPenFQYMTy4Gss

    • Get a #00 Philips head screwdriver ready for use.

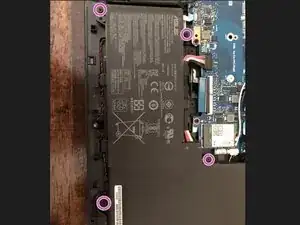

    • Carefully remove the #00 Philips screws to release the battery from the computer.

  5. SOCthGy5L1sMiRFw

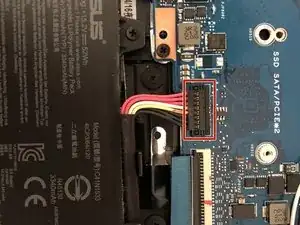

    • Locate the connector for the computer battery and circuit board.

    • Carefully pull up on the connection to safely disconnect the battery.

    This was the closest battery connector to my Asus Zenbook UX31A. I used the flat-head-style plastic-tool “jimmy” (opposite the spudger) to get under the wires and in between the connector and the motherboard. rotating the jimmy on the right and then on the left released the two plastic tabs. Good luck to anyone working with this computer.

    Dean Gadberry -

  6. XEMiBKoWtj3I1KUZ

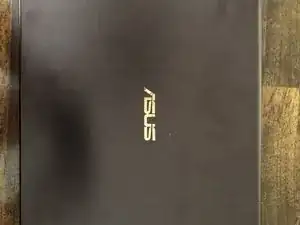

    • Carefully replace with a new battery and reassemble the computer with all previously used screws.

Conclusion

Furthermore, this is a comprehensive guide for a battery replacement on an Asus Q524U personal computer. To reassemble your device, please follow these instructions in reverse order.
