Beats Pill XL 'b' Button Replacement

Written By: Alejandro Velez

Comments: 2

Difficulty

Easy

Steps

Time Required

15 - 20 minutes

Introduction

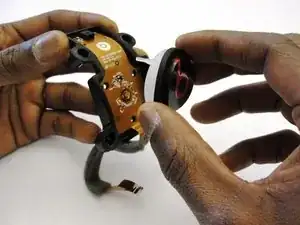

Involves opening the case, removing ribbon cable from motherboard, removing four screws, prying off the 'b' button from the hardware and replace with new 'b' button.

Tools

Step 1

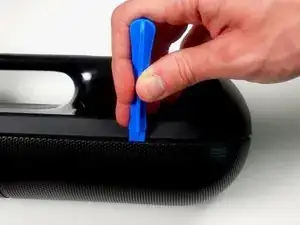

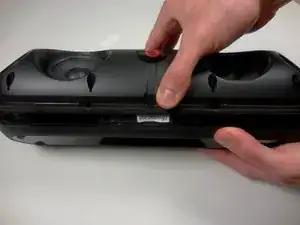

Using a plastic opening tool, pry the casing from the rest of the device.

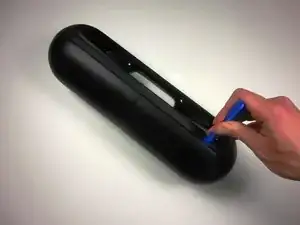

Pry all the way around the edge and then pull apart.
It should be relatively easy, to pull apart. Don't be afraid to apply a necessary force.

Step 2

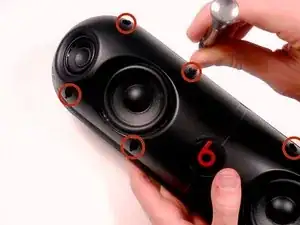

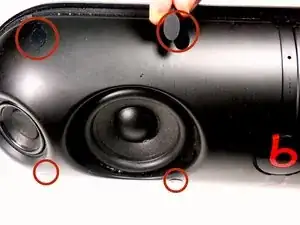

Using your thumb, remove the 8 rubber plugs in order to get to the screws.
Simply rub them towards the speakers and they will slide out enough to grip the edge and pull them out.
In the picture provided, we labeled four of them on one side of the Beats Pill XL. The other four are symmetrical to these four on the other side of the device.

Step 3

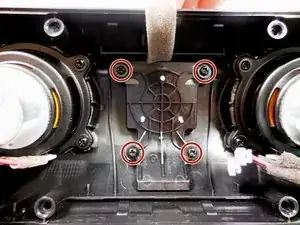

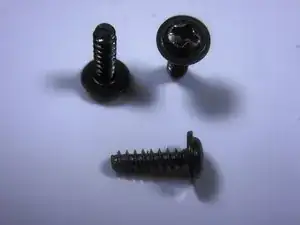

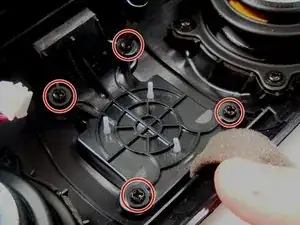

Using a Phillips #2 screwdriver, remove the 8 (10mm maxi-loc Phillips #2) screws that hold the casing together.

Step 4

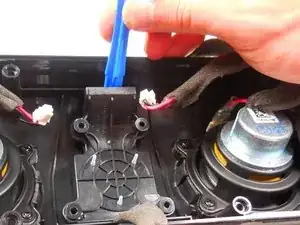

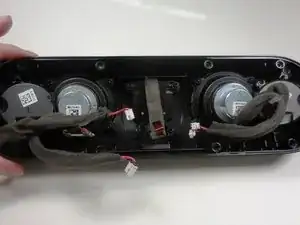

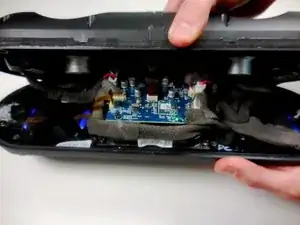

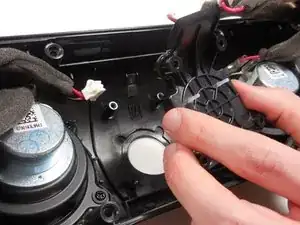

Pull apart the front casing from the back casing, slowly. Try to avoid any tension on any of the connected cables.
Separate at a slow constant force to avoid damage to the ribbon cables.

Step 5

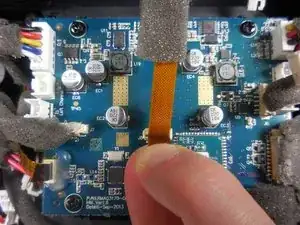

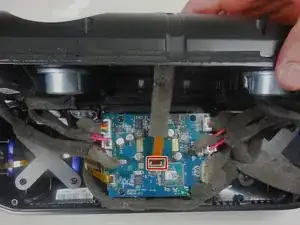

Gently pull on the plastic tab at the base of the ribbon cable to remove it from the motherboard.
Never pull the cables by the cord, as this could cause damage to the cables and/or motherboard. Always disconnect the cables from the base by the motherboard.

Hola amigos y amigas como estan me pueden ayudar como puedo conseguier la placa del beatspill esta q esta aki xf urgente soy de Ecuador ciudad manta

Stalin Salavarrialoor -

Step 6

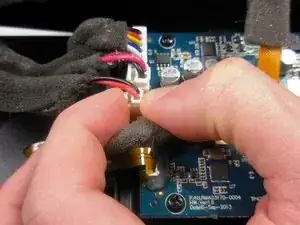

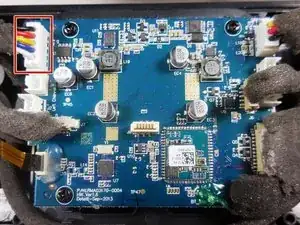

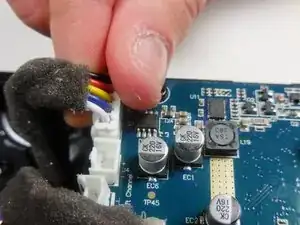

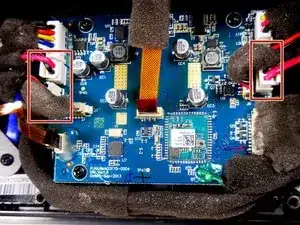

Using your thumb and index finger, pull upwards on the base of the the power cable to remove it from the motherboard.
Even though there are two batteries, there is only one cable connecting the two to the motherboard.
